EATON PKZM0-0,16

EATON PKZM0-0,16

EATON

  • $81.32
    Unit price per

In stock, can ship today!

717-209-7100



Call to Order 717-209-7100
Same Day Shipping


PKZM0-0,16 Eaton Motor Protector

The Eaton PKZM0-0,16 XTPRP16BC1 is
a 3 phase thermal-magnetic motor
protective device incorporating adjustable
bimetal trips for motor overload protections
and magnetic trips to de-energize the motor
circuit in case of a short circuit.

Options listed below

Tools Required:


Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:

pdfpicView Data Sheet

SELECTION CHART:

Rated Un-interrupted Current Setting Maximum HP Three phase Catalog No.
Overload Releases Short Circuit Releases 200V 240V 480V 600V
0.16 0.1 - 0.16 2.2 In this range, select motor protector in accordance with the motor name plate full load current PKZM0-0,16

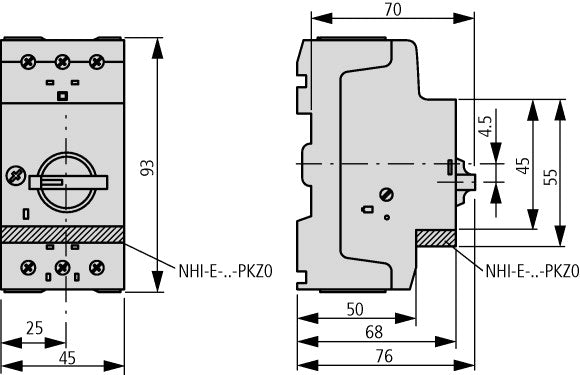

EATON PKZM0-0,16 Dimensions



Request More Information
