PKZM0-0,63
Buy Direct - Call Now: 717-209-7100
We will ship your order today!

Request More Information for EATON-PKZM0-0,63

Name:
Email:
Phone:
Ship To:

Message:





Eaton - PKZM0 Motor Protector

PKZM0-0,63
Eaton
Motor Protector

Price: $85.88

The Klockner Moeller PKZM0-0,63 XTPRP63BC1 is a
3 phase thermal-magnetic motor protective device
incorporating adjustable bimetal trips for motor
overload protections and magnetic trips to de-energize
the motor circuit in case of a short circuit.


Part No. PKZM0-0,63
Catalog No. 072733
Eaton Catalog No. XTPRP63BC1NL

Overload release adjustable from 0.4 - 0.63 AMPS

Other PKMZ0 Motor Protectors

Auxiliary Contacts:

Auxiliary Contact Blocks

Accessories:

Accessories

Tools Required:

Terminal Screw:

Pozidriv screwdriver size 2
Or
Standard screwdriver size 0.8 X 5.5 mm to 1 X 6 mm

View a data sheet

View Catalog Page


Eaton PKZM0-0,63 Motor Protector


Call To Order (717) 209-7100
Rated
Un-interrupted
Current
Setting Maximum HP Three phase Catalog No.
Overload
Releases
Short Circuit
Releases
200V 240V 480V 600V
.63 0.4 - 0.63 8.8 In this range, select motor protector in accordnace with the motor name plate full load current PKZM0-0,63

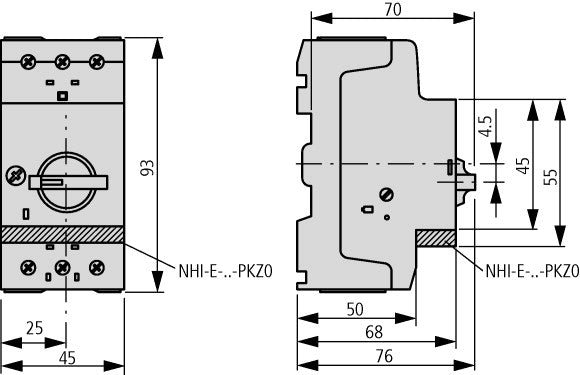

Eaton PKZM0-0,63 Dimensions
