PKZM0-10
Buy Direct - Call Now: 717-209-7100
We will ship your order today!

Request More Information for EATON-PKZM0-10

Name:
Email:
Phone:
Ship To:

Message:





EATON - PKZM0 Motor Protector

PKZM0-10
Eaton Motor Protector

Price: $93.48

The Eaton PKZM0-10 XTPR010BC1 is
a 3 phase thermal-magnetic motor
protective device incorporating adjustable
bimetal trips for motor overload protections
and magnetic trips to de-energize the motor
circuit in case of a short circuit.


Part No. PKZM0-10
Catalog No. 072739
Eaton Catalog No. XTPR010BC1NL

Overload release adjustable from 6.3 - 10 AMPS

Other PKMZ0 Motor Protectors

Auxiliary Contacts:

Auxiliary Contact Blocks

Accessories:

Accessories

Tools Required:

Terminal Screw:

Pozidriv screwdriver size 2
Or
Standard screwdriver size 0.8 X 5.5 mm to 1 X 6 mm

View a data sheet

View Catalog Page


Eaton PKZM0-10 Motor Protector


Call To Order (717) 209-7100
Rated
Un-interrupted
Current
Setting Maximum HP Three phase Catalog No.
Overload
Releases
Short Circuit
Releases
200V 240V 480V 600V
10 6.3 - 10 140 3 3 7.5 10 PKZM0-10

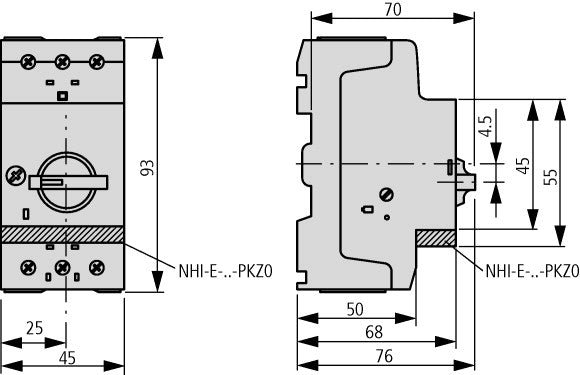

Eaton PKZM0-10 Dimensions
