EATON - PKZM0 Motor Protector

PKZM0-25
Eaton Motor Protector

Price: $94.50

The Eaton PKZM0-25 XTPR025BC1 is
a 3 phase thermal-magnetic motor
protective device incorporating adjustable
bimetal trips for motor overload protections
and magnetic trips to de-energize the motor
circuit in case of a short circuit.


Part No. PKZM0-25
Catalog No. 046989
Eaton Catalog No. XTPR025BC1NL

Overload release adjustable from 20 - 25 AMPS

Other PKMZ0 Motor Protectors

Auxiliary Contacts:

Auxiliary Contact Blocks

Accessories:

Accessories

Tools Required:

Terminal Screw:

Pozidriv screwdriver size 2
Or
Standard screwdriver size 0.8 X 5.5 mm to 1 X 6 mm

View a data sheet

View Catalog Page


Eaton PKZM0-25 Motor Protector


Call To Order (717) 209-7100
Rated
Un-interrupted
Current
Setting Maximum HP Three phase Catalog No.
Overload
Releases
Short Circuit
Releases
200V 240V 480V 600V
25 20 - 25 350 5 7.5 15 20 PKZM0-25

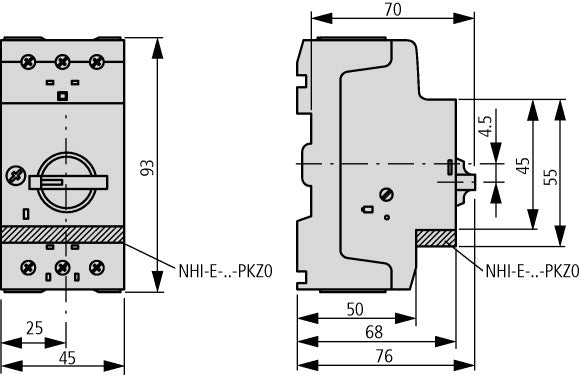

Eaton PKZM0-25 Dimensions
