Request More Information for NHI/E-10-PKZ0

Ship To:


EATON Auxiliary Contact

Auxiliary Contact

Price: Price List

The Eaton NHi-E-10-PKZ0 XTPAXFA10 is a front
mount auxiliary contact with 1NO contact.
It can be retrofitted to motor-protective circuit-breakers,
transformer-protective circuit-breakers,
motor-protective circuit-breakers for starter
combinations from serial number 01.

Part No. NHi-E-10-PKZ0
Catalog No. 082884
Eaton Catalog No. XTPAXFA10

For Use With:

PKZM0 Motor Protectors

PKZM01 Motor Protectors

PKZM4 Motor Protectors

PKM0 Motor Protectors

PKE Motor Protectors

View a data sheet

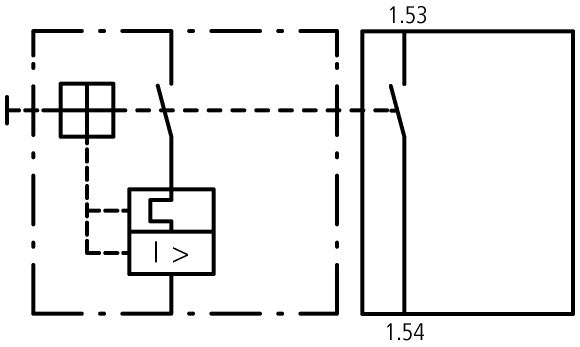

NHi-E-10-PKZ0 Contact Sequence

NHi-E-10-PKZ0 Auxiliary Contact

Call To Order (717) 209-7100
Mechanical Service Life Operating Current at AC-15 Type of Contacts Catalog No.
Switching Cycles 24V 230V NO NC Screw Terminals
10 000 000 2 1 1 - NHi-E-10-PKZM0

NHi-E-10-PKZ0 Dimensions
