NHi-E-11-PKZ0

Request More Information for NHI/E-11-PKZ0

Name:
Email:
Phone:
Ship To:

Message:





EATON Auxiliary Contact

NHi-E-11-PKZ0
EATON
Auxiliary Contact

Price: Price List

The Eaton NHi-E-11-PKZ0 XTPAXFA11 is a front
mount auxiliary contact with 1NO and 1NC contacts.
It can be retrofitted to motor-protective circuit-breakers,
transformer-protective circuit-breakers,
motor-protective circuit-breakers for starter
combinations from serial number 01.


Part No. NHi-E-11-PKZ0
Catalog No. 082882
Eaton Catalog No. XTPAXFA11

For Use With:

PKZM0 Motor Protectors

PKZM01 Motor Protectors

PKZM4 Motor Protectors

PKM0 Motor Protectors

PKE Motor Protectors


View a data sheet

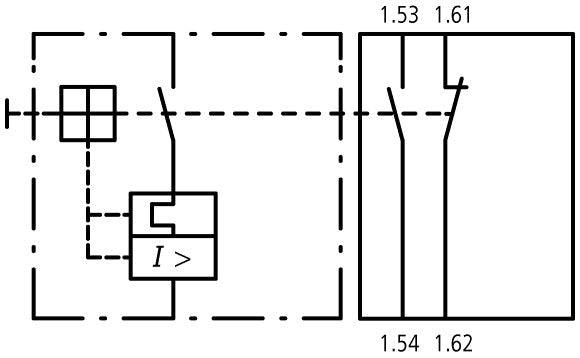

NHi-E-11-PKZ0 Contact Sequence

NHi-E-11-PKZ0 Auxiliary Contact


Call To Order (717) 209-7100
Mechanical Service Life Operating Current at AC-15 Type of Contacts Catalog No.
Switching Cycles 24V 230V NO NC Screw Terminals
10 000 000 2 1 1 1 NHi-E-11-PKZM0

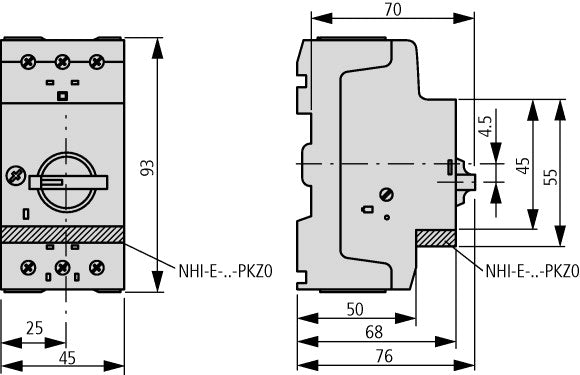

NHi-E-11-PKZ0 Dimensions
