NHi11-PKZ0

Request More Information for NHI11-PKZ0

Name:
Email:
Phone:
Ship To:

Message:





EATON Auxiliary Contact

NHi11-PKZ0
EATON
Auxiliary Contact

Price: Price List

The Eaton NHi11-PKZ0 XTPAXSA11 is a standard auxiliary
contact with 1NO and 1NC contacts. It can be
fitted to the right of motor-protective circuit-breakers,
transformer-protective circuit-breakers,
motor-protective circuit-breakers for starter combinations.


Part No. NHi11-PKZ0
Catalog No. 072896
Eaton Catalog No. XTPAXSA11

For Use With:

PKZM0 Motor Protectors

PKZM01 Motor Protectors

PKZM4 Motor Protectors

PKM0 Motor Protectors

PKE Motor Protectors



View a data sheet

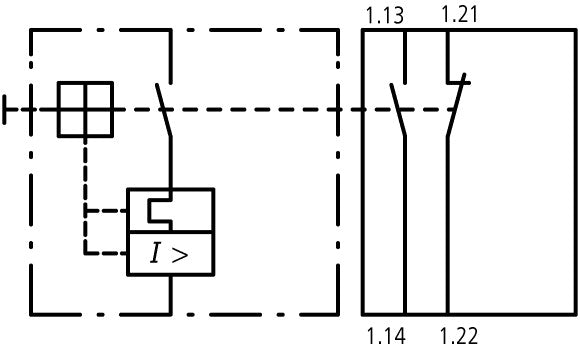

Nhi11-PKZ0 Contact Sequence

NHi11-PKZ0 Auxiliary Contact


Call To Order (717) 209-7100
Mechanical Service Life Operating Current at AC-15 Type of Contacts Catalog No.
Switching Cycles 24V 230V 400V 690V NO NC Screw Terminals
100 000 000 2 1 0.5 0.25 1 1 NHi11-PKZM0

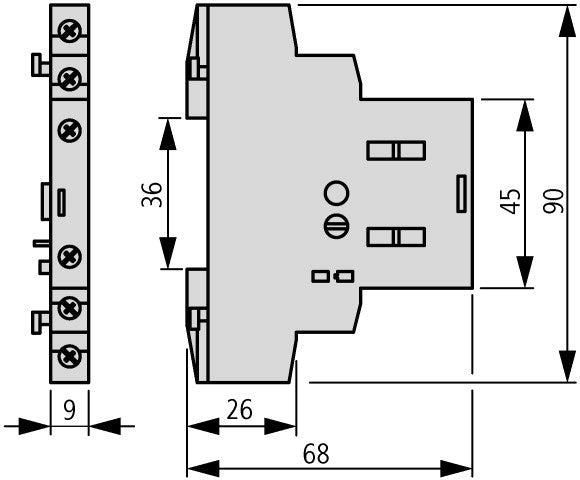

Nhi11-PKZ0 Dimensions
