EATON Auxiliary Contact

NHi12-PKZ0
EATON
Auxiliary Contact

Price: Price List

The Eaton NHi12-PKZ0 XTPAXFA12 is a standard auxiliary
contact with 1NO and 2NC contacts. It can be
fitted to the right of motor-protective circuit-breakers,
transformer-protective circuit-breakers,
motor-protective circuit-breakers for starter combinations.


Part No. NHi12-PKZ0
Catalog No. 072895
Eaton Catalog No. XTPAXSA12

For Use With:

PKZM0 Motor Protectors

PKZM01 Motor Protectors

PKZM4 Motor Protectors

PKM0 Motor Protectors

PKE Motor Protectors


View a data sheet

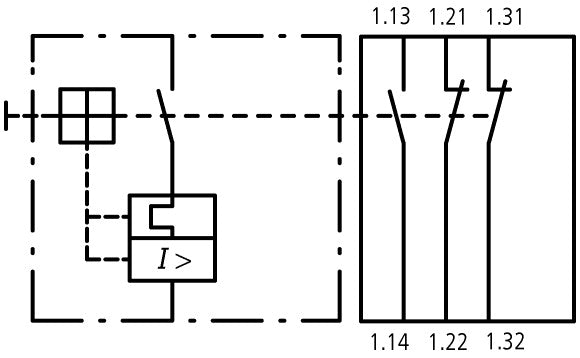

Nhi12-PKZ0 Contact Sequence

NHi12-PKZ0 Auxiliary Contact


Call To Order (717) 209-7100
Mechanical Service Life Operating Current at AC-15 Type of Contacts Catalog No.
Switching Cycles 24V 230V 400V 690V NO NC Screw Terminals
100 000 000 2 1 0.5 0.25 1 2 NHi12-PKZM0

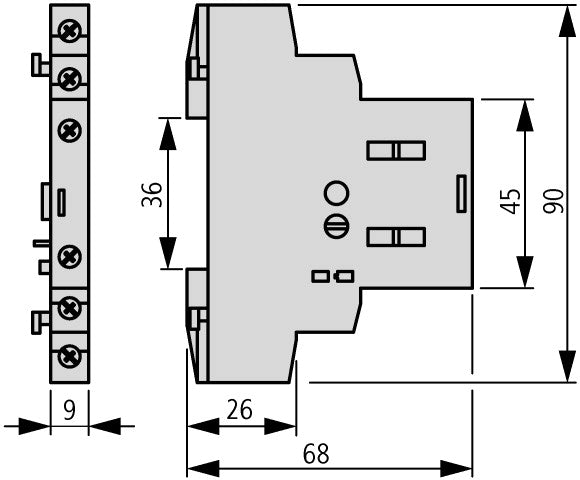

Nhi12-PKZ0 Dimensions
