EATON Auxiliary Contact

VHi20-PKZ0
EATON
Auxiliary Contact

Price: Price List

The Eaton VHi20-PKZ0 XTPAXFAEM20 is a front
mount auxiliary contact with 2NO contacts.
VHI20-PKZ0 cannot be used in combination
with PKZ0-X(R)M.


Part No. VHi20-PKZ0
Catalog No. 203595
Eaton Catalog No. XTPAXFAEM20

For Use With:

PKZM0 Motor Protectors

PKZM4 Motor Protectors

PKM0 Motor Protectors


View a data sheet

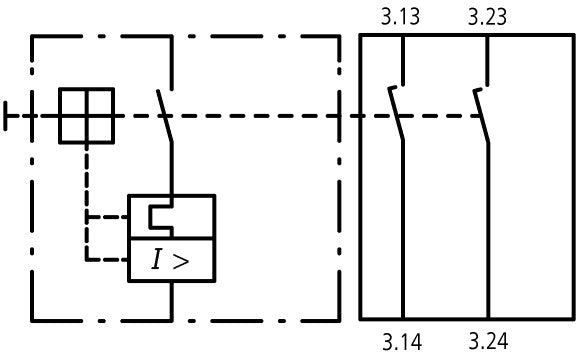

VHi20-PKZ0 Contact Sequence

VHi20-PKZ0 Auxiliary Contact


Call To Order (717) 209-7100
Mechanical Service Life Operating Current at AC-15 Type of Contacts Catalog No.
Switching Cycles 220V - 240V NO NC Screw Terminals
10 000 000 1 2 - VHi20-PKZ0

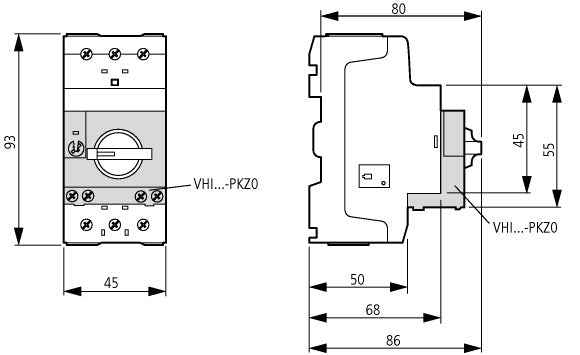

VHi20-PKZ0 Dimensions
