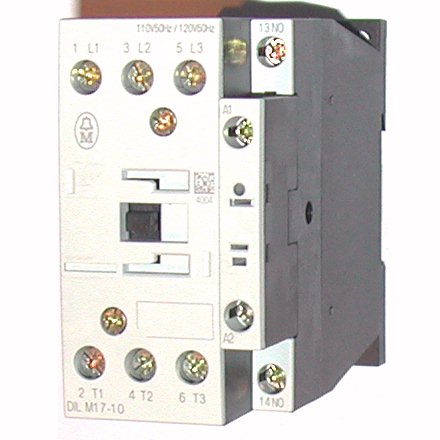

DILM17, DILM25, DILM32- Klockner Moeller Motor Starter Contactors




Klockner Moeller Contactors offer a wide voltage tolerance +10% - 20% nominal. Moeller contactors have front mounted coil terminals, four compact frame sizes cover applications to 150A, dual box terminals make wiring safer and easier for cables with uneven cross -sections. Their plug-in technology provides tool-less connection with other contactors and accessories, saving time and reducing wiring errors.


Klockner Moeller Motor Starter Contactors       Catalog page      Auxiliary Contacts      Surge Suppressors      Overload Relays


Contactor AC/DC Selection Chart: Call To Order (717) 209-7100
Photo Three Phase
HP Ratings
Auxiliary
Contacts
Catalog No. Price
230V 460V NO NC Screw Terminals Spring Terminals
 DILM17 DILMC17
5 10 0 1 DILM17-01 DILMC17-01 $92.80
1 0 DILM17-10 DILMC17-10
2 1 DILM17-21 $111.30
3 2 DILM17-32 $125.60
DILM25 DILMC25
7.5 15 0 1 DILM25-01 DILMC25-01 $124.90
1 0 DILM25-10 DILMC25-10
2 1 DILM25-21 $143.40
3 2 DILM25-32 $157.70
DILM32 DILMC32
10 20 0 1 DILM32-01 DILMC32-01 $157.00
1 0 DILM32-10 DILMC32-10
2 1 DILM32-21 $175.50
3 2 DILM32-32 $189.80
Contactor DC Selection Chart: Call To Order (717) 209-7100
Photo Three Phase
HP Ratings
Auxiliary
Contacts
Catalog No. Price
230V 460V NO NC Screw Terminals Spring Loaded Terminals
5 10 0 1 DILM17-01(RDC24) DILMC7-01(RDC24) $132.00
1 0 DILM7-10(RDC24) DILMC17-10(2RDC24)
2 1 DILM17-21(RDC24) DILMC17-21(RDC24) $150.50
3 2 DILM17-32(RDC24) DILMC17-32(RDC24) $164.80
7.5 15 0 1 DILM25-01(24VDC) DILMC25-01(24VDC) $160.60
1 0 DILM25-10(24VDC) DILMC25-10(24VDC)
2 1 DILM25-21(24VDC) DILMC25-21(24VDC) $179.10
3 2 DILM25-32(24VDC) DILMC25-32(24VDC) $193.40
10 20 0 1 DILM32-01(24VDC) DILMC32-01(24VDC) $221.30
1 0 DILM32-10(24VDC) DILMC32-10(24VDC)
2 1 DILM12-21(24VDC) DILMC12-21(24VDC) $239.80
3 2 DILM32-32(RDC24) DILMC32-32(24VDC) $254.10



Auxiliary Contact block Selection Chart:
For DILM17, DILM25, DILM32
    Call To Order (717) 209-7100
Photo Description Auxiliary Contacts Catalog No Price
NO NC Screw terminals Spring Loaded Terminals
Front mounted 1 1 DILM32-XHi11 DILM32-XHiC11 $18.50
0 2 DILM32-XHi02 DILM32-XHiC02
2 2 DILM32-XHi22 DILM32-XHiC22 $32.80
3 1 DILM32-XHi31 DILM32-XHiC31
Side mounted 1 1 DILM32-XHi11-S DILM32-XHiC11-S $32.10



Other Auxiliary Contacts Selection Chart:     Call To Order (717) 209-7100
Photo Description Auxiliary Contacts Catalog No Price
NO NC Screw terminals Spring Loaded Terminals
Front mounted 2 0 DILA-XHi20 DILA-XHiC20 $18.50
1 1 DILA-XHi11 DILA-XHiC11
0 2 DILA-XHi02 DILA-XHiC02
1 1 DILA-XHiV11 DILA-XHiCV11 $35.70
4 0 DILA-XHi40 DILA-XHiC40 $32.80
3 1 DILA-XHi31 DILA-XHiC31
2 2 DILA-XHi22 DILA-XHiC22
1 3 DILA-XHi13 DILA-XHiC13
0 4 DILA-XHi04 DILA-XHiC04
2 2 DILA-XHiV22 DILA-XHiCV22 $51.40




General Purpose Continous Amp Ratings:     Call To Order (717) 209-7100
Contactor Series Open Amps Ratings:
DIL M17 40
DIL M25 40
DIL M32 40
