DIL00AM Moeller Electric, replaced by DILM12.

Replacing the Moeller DIL00AM with the new DILM12 with dimension drawings.

Klockner Moeller Siemens	Clifton, NJ. (973) 473-0618
Moeller Electric xStart DIL00AM > DILM12	Special Pricing Available for Dealers and Service/Repair Firms

Nationwide order desk and technical support:

Buy direct - call now: (973) 473-0618
We will ship your order today!

Replacement notes:

The original Klockner Moeller DIL00AM series is replaced by Moeller Electric's new DILM12 series. The DILM12 is a perfect replacement and even the mounting holes line up. Moeller also offers the new plug-in overloads series ZB12 to fit the new DILM12.

DILM12 Contactor Selection Chart:
Always specify coil voltage.

3-Phase
Motor
Horsepower Cont.
Amps Built-In
Auxiliary
Contacts Catalog #
Old / New

3 hp @ 200 V
3 hp @ 230 V
10 hp @ 460 V
10 hp @ 575 V 20 1 - N.O. DIL00AM
DILM12-10

1 - N.O. DIL00AM-10
DILM12-10

1 - N.C. DIL00AM-01
DILM12-01

Click here for: pricing auxiliary contact blocks plug-in overload relays

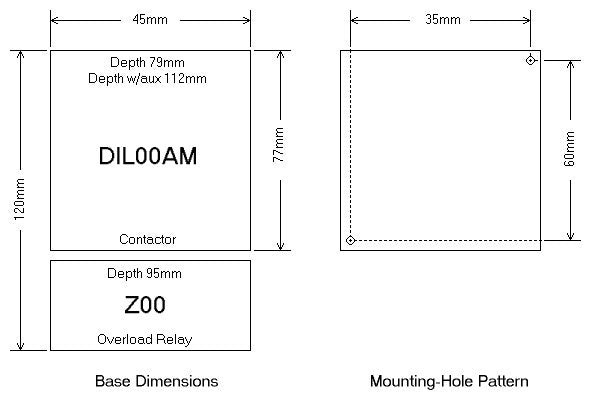

Original DIL00AM:

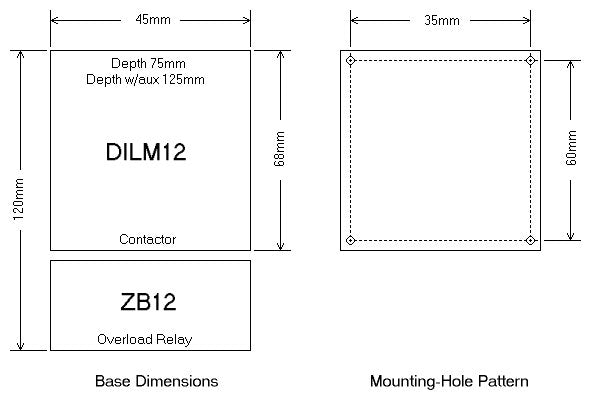

New DILM12:

Klockner Moeller / Moeller Electric & Siemens Sirius Relays - home page
Klockner Moeller Electric & Siemens Sirius - Price Catalog
Klockner Moeller / Moeller Electric - photos
Moeller Electric - xStart - photos
Siemens Relays & Switches - photos
Siemens Sirius - photos
Email
Terms & Conditions

Replacement notes: The original Klockner Moeller DIL00AM series is replaced by Moeller Electric's new DILM12 series. The DILM12 is a perfect replacement and even the mounting holes line up. Moeller also offers the new plug-in overloads series ZB12 to fit the new DILM12.

DILM12 Contactor Selection Chart: Always specify coil voltage.
3-Phase Motor Horsepower	Cont. Amps	Built-In Auxiliary Contacts	Catalog # Old / New
3 hp @ 200 V 3 hp @ 230 V 10 hp @ 460 V 10 hp @ 575 V	20	1 - N.O.	DIL00AM DILM12-10
		1 - N.O.	DIL00AM-10 DILM12-10
		1 - N.C.	DIL00AM-01 DILM12-01
Click here for: pricing auxiliary contact blocks plug-in overload relays
Original DIL00AM:
New DILM12:
