DIL00M Moeller Electric, replaced by DILM9.

Replacing the Moeller DIL00M with the new DILM9 with dimension drawings.

Klockner Moeller Siemens	Clifton, NJ. (973) 473-0618
Moeller Electric xStart DIL00M > DILM9	Special Pricing Available for Dealers and Service/Repair Firms

Nationwide order desk and technical support:

Buy direct - call now: (973) 473-0618
We will ship your order today!

Replacement notes:

The original Klockner Moeller DIL00M series is replaced by Moeller Electric's new DILM9 series. The DILM9 is a perfect replacement and even the mounting holes line up. Moeller also offers the new plug-in overloads series ZB12 to fit the new DILM9.

DILM9 Contactor Selection Chart:
Always specify coil voltage.

3-Phase
Motor
Horsepower Cont.
Amps Built-In
Auxiliary
Contacts Catalog #
Old / New

3 hp @ 200 V
3 hp @ 230 V
5 hp @ 460 V
7½ hp @ 575 V 20 1 - N.O. DIL00M
DILM9-10

1 - N.O. DIL00M-10
DILM9-10

1 - N.C. DIL00M-01
DILM9-01

Click here for: pricing auxiliary contact blocks plug-in overload relays

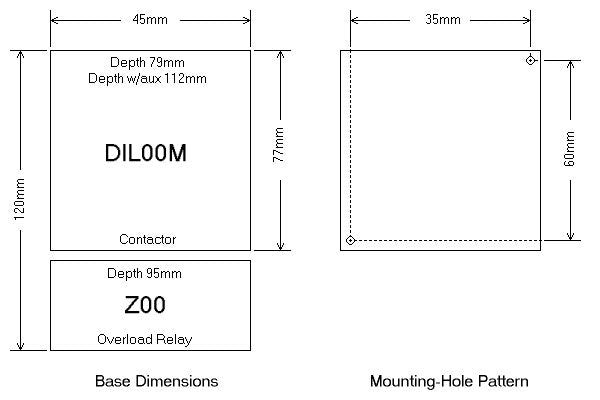

Original DIL00M:

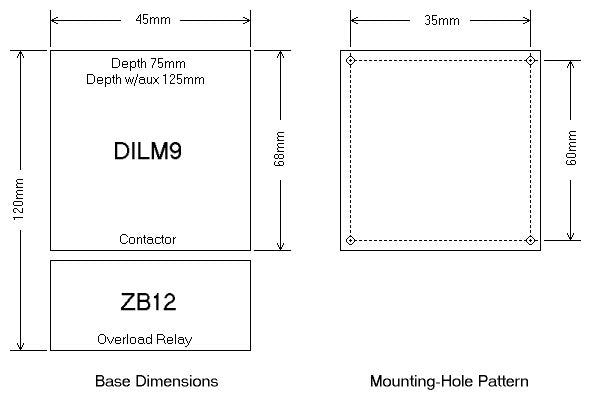

New DILM9:
