DIL0AM Moeller Electric

Stocking Klockner Moeller, Siemens, Allen-Bradley	Lancaster, PA (717) 209-7100
Klockner Moeller Electric DIL0AM	Same Day Shipping

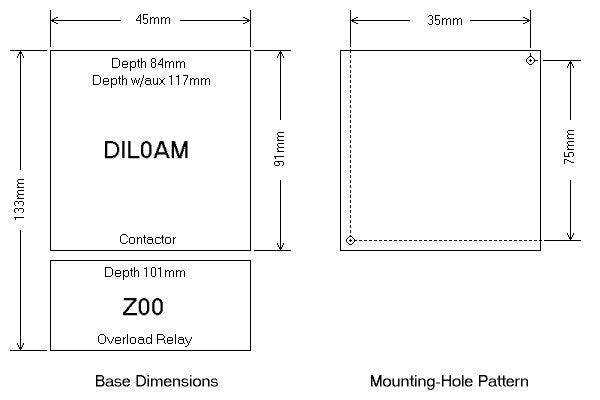

MOELLER ELECTRIC DIL0AM Call to order (717) 209-7100 or click on price to place in cart KLOCKNER MOELLER ELECTRIC DIL0AM Other DIL M Contactors TOOLS REQUIRED: Pozidriv Screwdriver size 2 ACCESSORIES: Auxiliary Contact Blocks Interface Relays OVERLOAD RELAYS: Z00 Overload Relays REPLACEMENT PARTS: J-DILM replacement coils DIL0AM DIMENSIONS: Replacement notes: The original Klockner Moeller DIL0AM series is replaced by Moeller Electric's new DILM series. The DILM25-10 is a good replacement and is a bit smaller than the original. The mounting holes do not line up. A little extra depth is needed. Moeller also offers the new plug-in overloads series Z00 to fit the new DIL25-10.
DILM25 Contactor Selection Chart: Always specify coil voltage.
3-Phase Motor Horsepower	Cont. Amps	Built-In Auxiliary Contacts	Catalog # Old / New
7½ hp @ 200 V 7½ hp @ 230 V 15 hp @ 460 V 20 hp @ 575 V	40	1 - N.O.	DIL0AM DILM25-10

MOELLER ELECTRIC DIL0AM
