Klockner Moeller           Siemens	Clifton, NJ. (973) 473-0618
Moeller Electric xStart DIL2M > DILM50	Special Pricing Available for Dealers and Service/Repair Firms

Nationwide order desk and technical support:

Replacement notes: The original Klockner Moeller DIL2M series is replaced by Moeller Electric's new DILM50 series. The DILM50 is a good replacement and is a bit narrower than the original. The mounting holes do not line up. A little extra depth is needed. Moeller also offers the new plug-in overloads series ZB65 to fit the new DILM50.
DILM50 Contactor Selection Chart: Always specify coil voltage.
3-Phase Motor Horsepower	Cont. Amps	Built-In Auxiliary Contacts	Catalog # Old / New
15 hp @ 200 V 20 hp @ 230 V 40 hp @ 460 V 50 hp @ 575 V	65	-	DIL2M DILM50
Click here for:          pricing         auxiliary contact blocks         plug-in overload relays

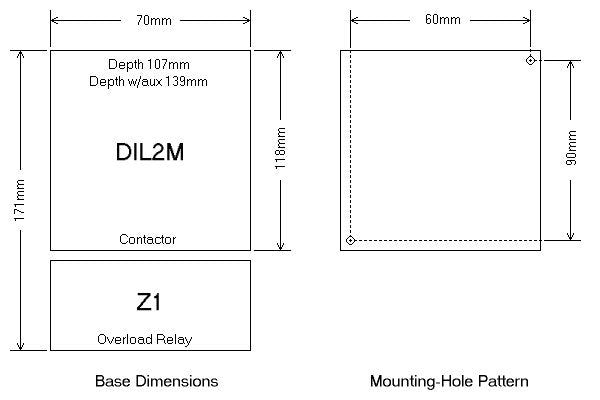

Original DIL2M:

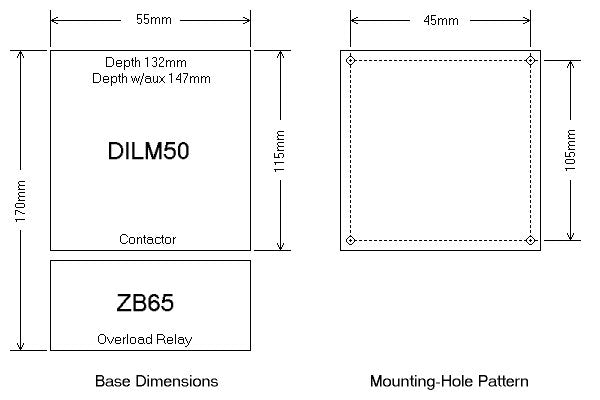

New DILM50:
