Klockner Moeller Electric DILEEM	Same Day Shipping

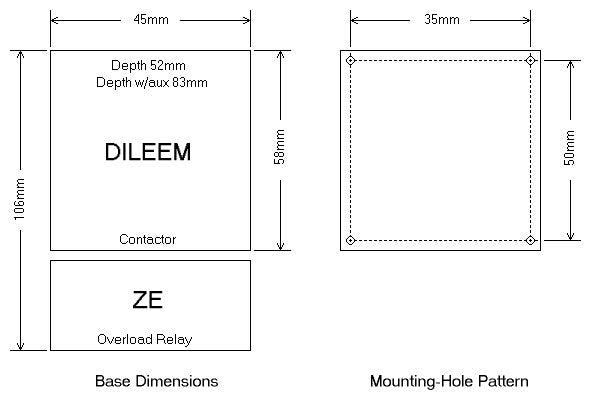

Moeller Electric DILEEM Call to order (717) 209-7100 or click on price to place in cart KLOCKNER MOELLER ELECTRIC DILEEM Other DIL M Contactors Tools Required: Pozidriv Screwdriver size 2 Accessories: Auxiliary Contact Blocks Overload Relays: ZE Overload Relays DILEEM Dimensions: Replacement notes: The original Klockner Moeller DILEEM series is replaced by Moeller Electric's new DILM series. The DILM7 is a good replacement and is a bit smaller than the original. The mounting holes do not line up. A little extra depth is needed. Moeller also offers the new plug-in overloads series ZB12 to fit the new DILM7.
DILM7 Contactor Selection Chart: Always specify coil voltage.
3-Phase Motor Horsepower	Cont. Amps	Built-In Auxiliary Contacts	Catalog # Old / New
1.5 hp @ 200 V 2 hp @ 230 V 3 hp @ 460 V 5 hp @ 575 V	20	1 - N.O.	DILEEM-10 DILM7-10
		1 - N.C.	DILEEM-01 DILM7-01
