DILA-40-13

DILA-40-13 Klockner Moeller xStart Control Relays

Nationwide order desk and technical support:

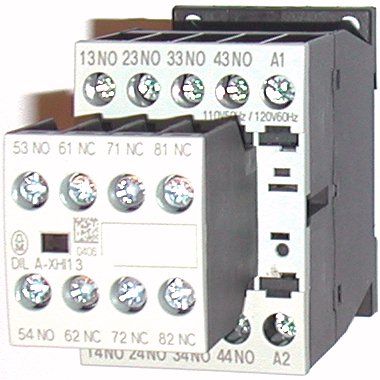

The Klockner Moeller DILA-40-13 is a 4 pole IEC
rated Contactor Relay with 4
fixed contacts and 4 auxiliary contacts.
It comes with 5NO and 3NC contacts.
International Standard EN 50 011
Conforms to IEC 60947-5-1

TOOLS REQUIRED:

Pozidriv Screwdriver size 2

ACCESSORIES:

Auxiliary Contact Blocks

VIEW CATALOG PAGE

DILA-40-13 CONTACTOR RELAY

---

SELECTION CHART:

Distinctive No.	Auxiliary contacts		Coil Voltage / AC Voltage		Catalog No.
	NO	NC	50Hz	60Hz
40D	5	3	24V	24V	DILA-40-13(24V50/60Hz)
			110V	120V	DILA-40-13(110V50Hz, 120V60Hz)
			220V	240V	DILA-40-13(220V50Hz, 240V60Hz)

DILA-40-13 DIMENSIONS
