DILM9-10 (24VDC)

DILM9-10 (24VDC)

KLOCKNER MOELLER ELECTRIC

  • $85.60
    Unit price per

In stock, can ship today!

717-209-7100



Call to Order 717-209-7100
Same Day Shipping

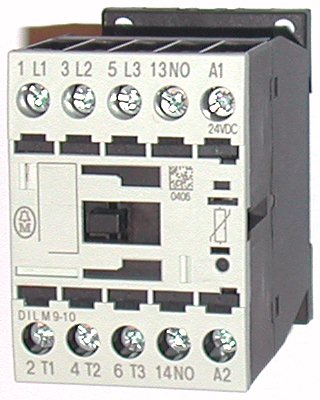

DILM9-10 (24VDC) Klockner Moeller xStart Contactors

The Klockner Moeller DILM9-10 (24VDC)
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 5 HP at 460V. It comes with
1NO  auxiliary contact.
Conforms to IEC 60947

DC Operating Coil Voltage:

24VDC

Tools Required:

Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:


Overload Relays:

ZB12 Motor Overload Relays

DILM9-10(415V50HZ, 480V60HZ)


Selection Chart:

Amp
ratings
Three phase
HP ratings
Auxiliary
contacts
Coil Voltage / DC Voltage Catalog No.
AC1 230V 460V NO NC
20 3 5 1 0 24VDC DILM9-10(24VDC)


DILM9-10(24VDC) Contact Sequence



DILM9-10(24VDC) Dimensions
