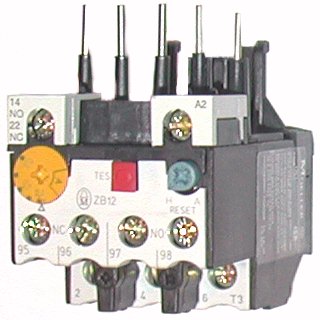

ZB12-4 Klockner Moeller Overload Relay

The Klockner Moeller ZB12-4 / Eaton ZB12-4 or XTOB004BC1
is an IEC rated thermal overload relay
used for the protection of three-phase motors.
Klockner Moeller overload relays reliably protect loads
against overload, phase asymmetry and phase failure.
Class 10
Size B

AMP RANGE:

2.4- 4



TOOLS REQUIRED:


Pozidriv Screwdriver size 2
pozidrive screwdriver

FOR USE WITH:



pdfpicVIEW DATA SHEET

ZB12-4 THERMAL OVERLOAD RELAY


SELECTION CHART:

Frame
Size
Class For Contactor Setting Range Amps Catalog No.
B 10 DILM7, DILM9, DILM12, DILM15 2.4 - 4 ZB12-4


ZB12-4 CONTACT SEQUENCE:






ZB12-4 DIMENSIONS:
