The Siemens 3RT1017-1A / 3RT1017-1A..2
is a 3-phase IEC rated contactor used for
the control of electric motors. It is rated
3 HP at 230V and 7.5 HP at 460V.
Conforms to IEC 60946

Other 3RT Contactors

Tools Required:
Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:

Overload Relays:

Description:

Siemens Sirius 3RT1017-1A..2 is a very compact industrial motor starter contactor, suitable for starting 3-phase motors up to 3 HP @ 230 volts and 7½ HP @ 460 volts. One normally-closed auxiliary contact is included, and additional auxiliary contacts can be front mounted. Plug-in overload relays are also available.

3RT1017-1A..2 Contactor Selection Chart:
3-Phase
Motor
Horsepower
Built-In
Auxiliary
Contacts
Cont.
Amps
AC Coil
Voltage
Catalog #
3 hp @ 200 V
3 hp @ 230 V
7½ hp @ 460 V
10 hp @ 575 V
1 - N.C. 20 24 3RT1017-1AB02
120 3RT1017-1AK62
208 3RT1017-1AM22
240 3RT1017-1AP62
480 3RT1017-1AV62

Coil Power Consumption:        Inrush: 31.7 VA.,         Sealed: 5.1 VA.




Maximum Wire Size:        2 x 14 AWG,         1 x 12 AWG




Click here for:          pricing         auxiliary contacts         plug-in overload relays

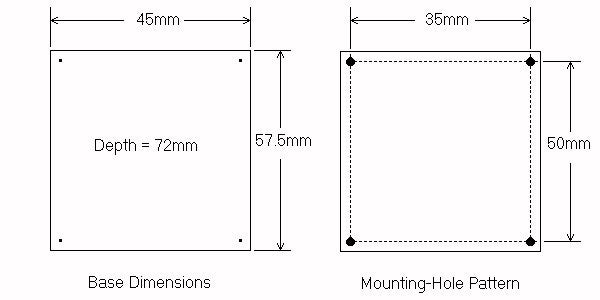

Dimensions:



These units have track-mounting clips for 35mm DIN-rail as standard.
Front-mounted auxiliary contacts add an extra 34mm to the depth.
Side-mounted contacts add an extra 10mm to the side, per each block.
