Siemens Sirius Control Relay

3RH1131-1A
SIEMENS
Control Relay

Price: Price List

The Siemens Sirius 3RH1131-1A is
a 4 pole IEC rated Control Relay with 4
fixed contacts. It comes with 3NO
and 1NC auxiliary contacts.
Identification Number 31E.
International Standard EN 50 011
Conforms to IEC 60947-5-1

AC operating coil voltage:

Options listed below

Other 3RH11 Control Relays

Accessories:

Auxiliary Contact Blocks

Surge Suppressors

View a data sheet

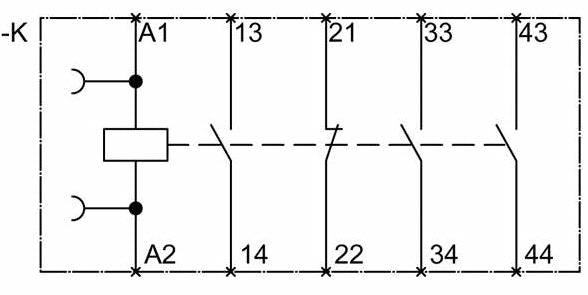

3RH1131-1A Contact Sequence:



SIEMENS Sirius 3RH1131-1A Control Relay


3RH11 Control Relay Selection Chart:
USA and Canada
Call To Order (717) 209-7100
Frame Size Type of Contacts Identification
No.
Coil Voltage/AC Voltage Catalog No.
NO NC 50Hz 60Hz
S00 3 1 31E 24V 24V 3RH1131-1AB00
110V 120V 3RH1131-1AK60
220V 240V 3RH1131-1AP60




3RH11 Control Relay Selection Chart:
Worldwide
Call To Order (717) 209-7100
Frame
Size
Auxiliary
contacts
Coil Voltage / AC Voltage Catalog No.
NO NC 50Hz 60Hz Screw terminals
S00 3 1 20V 24V 3RH1131-1AC10
42V 50V 3RH1131-1AD00
110V 132V 3RH1131-1AF00
92V 110V 3RH1131-1AG10
48V 58V 3RH1131-1AH00
125V/127V 150V/152V 3RH1131-1AL00
230V 230V 3RH1131-1AL20
208V 208V 3RH1131-1AM20
220V 220V 3RH1131-1AN20
230V/220V 276V/264V 3RH1131-1AP00
380V 460V 3RH1131-1AQ00
380V 380V 3RH1131-1AQ20
440V 440V 3RH1131-1AR20
Product function positively driven operation acc. To IEC 60947-5-1
