Siemens Sirius Control Relay

3RH1140-1B
SIEMENS
Control Relay

Price: Price List

The Siemens Sirius 3RH1140-1B is
a 4 pole IEC rated Control Relay with 4
fixed contacts. It comes with 4NO contacts.
Identification Number 40E.
International Standard EN 50 011
Conforms to IEC 60947-5-1

DC operating coil voltage:

Options listed below

Other 3RH11 Control Relays

Accessories:

Auxiliary Contact Blocks

Surge Suppressors

pdf picView a data sheet

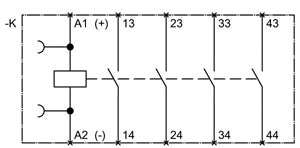

3RH1140-1B Contact Sequence

3rh1140-1B-contact-sequence


SIEMENS Sirius 3RH1140-1B Control Relay with DC coil


3RH11 Control Relay Selection Chart:
USA and Canada
Call To Order (717) 209-7100
Frame
Size
Auxiliary
contacts
Identification
No.
Coil Voltage / DC Voltage Catalog No.
NO NC Screw terminals
S00 4 0 40E 12VDC 3RH1140-1BA40
24VDC 3RH1140-1BB40
42VDC 3RH1140-1BD40
48VDC 3RH1140-1BW40
60VDC 3RH1140-1BE40
110VDC 3RH1140-1BF40
125VDC 3RH1140-1BG40
220VDC 3RH1140-1BM40
230VDC 3RH1140-1BP40
