3RH1911-1GA13

3RH1911-1GA13

SIEMENS

  • $40.60
    Unit price per

In stock, can ship today!

717-209-7100



Call to Order 717-209-7100
Same Day Shipping

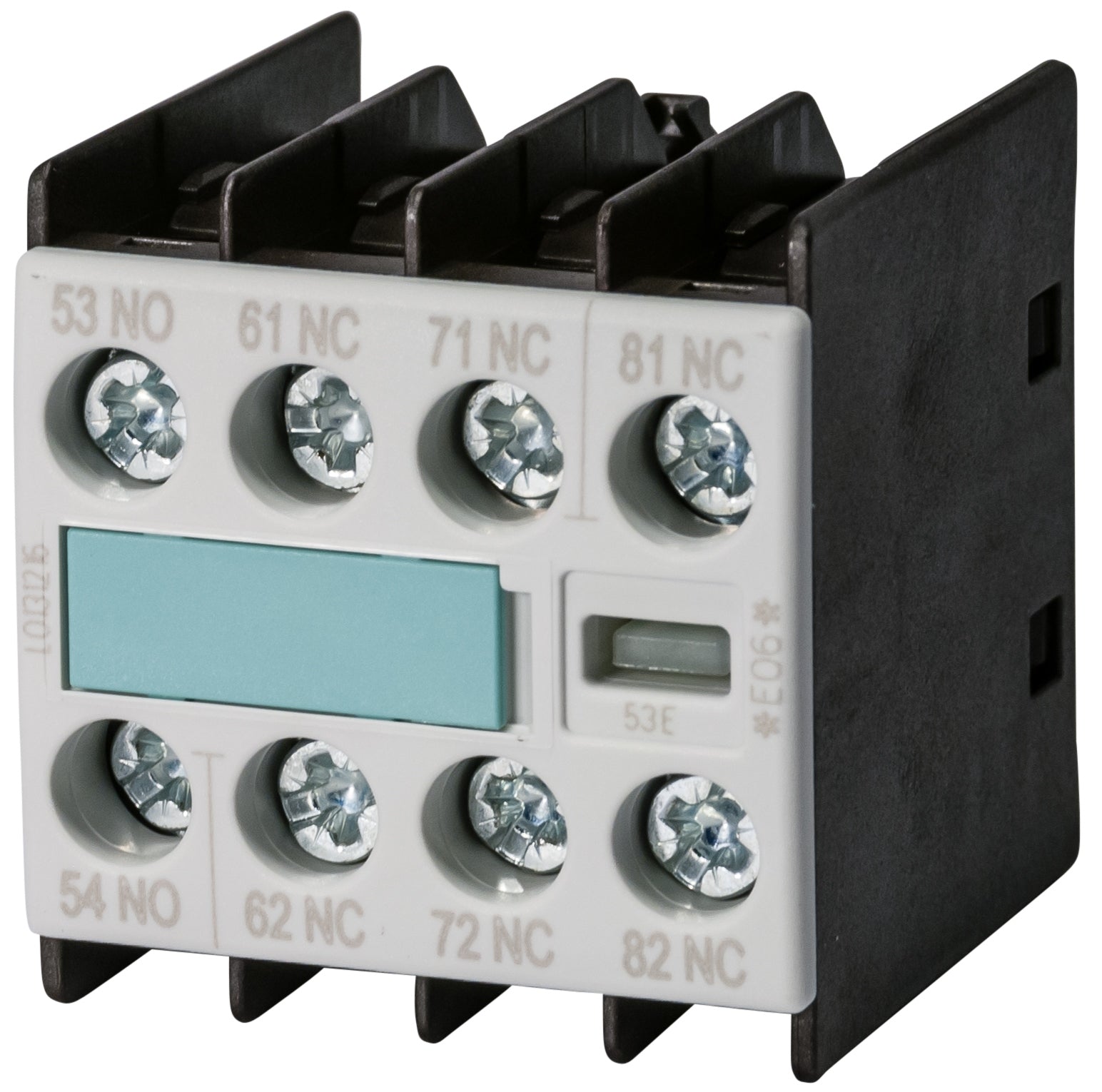

3RH1911-1GA13 Siemens Auxiliary Contact Block

The Siemens 3RH1911-1GA13 is a
snap on front mount auxiliary
contact block with 1NO and 3NC contacts.
Identification No. 53E
Conforms to IEC 60947-5-1

Options listed below

For Use With:

pdfpicView Data Sheet

3RH1911-1GA13 Auxiliary Contact Block


Selection Chart:

Mechanical Service Life Identification
No.
Operating Current at AC-15 Auxiliary
contacts
Catalog No.
Switching Cycles 24V 230V 400V 690V NO NC
10 000 000 53E 6 6 3 1 1 3 3RH1911-1GA13

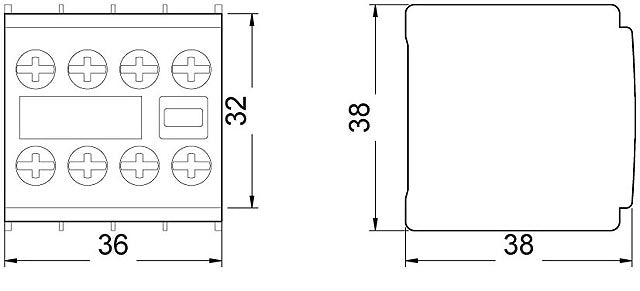

3RH1911-1GA13 Dimensions
