Siemens Sirius 3RT1025-1AK60 Contactor

3RT1025-1AK60 Siemens Sirius Contactor Motor Starter | Click here for more 3RT contactor information.

Siemens Sirius 3RT1025-1AK60 Contactor specifications & dimensions

Price: $132.00 | In Stock

Buy direct - call now: (717) 209-7100

auxiliary contacts | plug-in overload relays

Siemens Sirius 3RT1025-1AK60 is a heavy-duty industrial motor starter contactor, suitable for starting 3-phase motors up to 30 HP @ 230 volts and 75 HP @ 460 volts. Auxiliary contacts can be front or side mounted. Plug-in overload relays are also available.

3RT1025-1A Contactor Selection Chart:
3-Phase
Motor
Horsepower
Built-In
Auxiliary
Contacts
Cont.
Amps
AC Coil
Voltage
Catalog #
5 hp @ 200 V
5 hp @ 230 V
10 hp @ 460 V
15 hp @ 575 V
- 35 243RT1025-1AC20
1203RT1025-1AK60
2083RT1025-1AM20
2403RT1025-1AP60
4803RT1025-1AV60
Coil Power Consumption: Inrush: 69 VA., Sealed: 7.5 VA.
Maximum Wire Size: 2 x 10 AWG, 1 x 8 AWG
Dimensions:

3RT1025 1AK60 Siemens Sirius 3RT Contactor

3RT1025-1AK60 have track-mounting clips for 35mm DIN-rail as standard.
Front-mounted auxiliary contacts add an extra 49mm to the depth.
Side-mounted contacts add an extra 10mm to the side, per each block.

Request More Info for 3RT1025-1AK60

If you want a speedy reply, please provide your email address or phone number

Name:
Email:
Phone:
Ship To:

Message:





3RT1025-1AK60

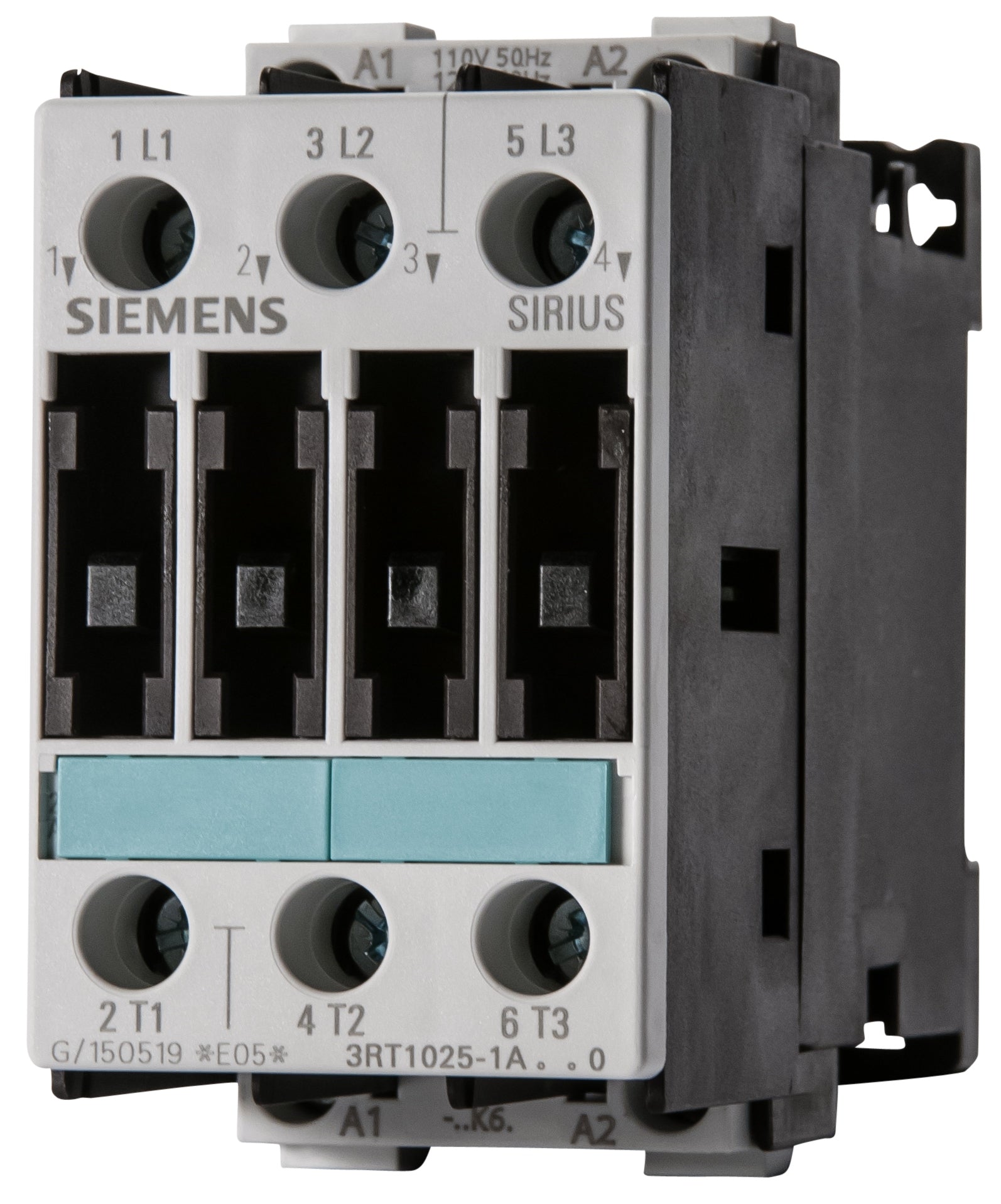

3RT 1025 1AK60 pictured above

3RT1025-1AK60

3RT 1025 1AK60 pictured above
