Request More Information for AGM2-10-PKZ0

Ship To:


EATON Auxiliary Contact

Auxiliary Contact

Price: Price List

The Eaton AGM2-10-PKZ0 XTPAXSATR20 is a right
mount auxiliary contact with 2NO contacts.
It can be retrofitted to motor-protective circuit-breakers.
Differential status indication:
a) General trip indication (overload)
b) Short-circuit release
Short-circuits indicated locally by means of
a red indicator that can be manually reset

Part No. AGM2-10-PKZ0
Catalog No. 072898
Eaton Catalog No. XTPAXSATR20

For Use With:

PKZM0 Motor Protectors

View a data sheet

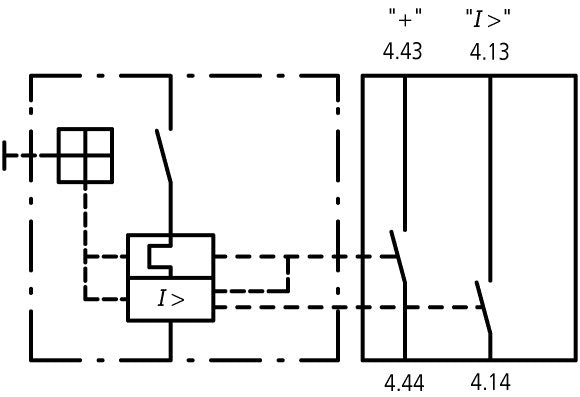

AGM2-10-PKZ0 Contact Sequence

AGM2-10-PKZ0 Auxiliary Contact

Call To Order (717) 209-7100
Mechanical Service Life Operating Current at AC-15 Type of Contacts Catalog No.
Switching Cycles 220V - 415V 380V - 415V 440V - 500V NO NC Screw Terminals
10 000 000 3.5 2 1 2 - AGM2-10-PKZM0

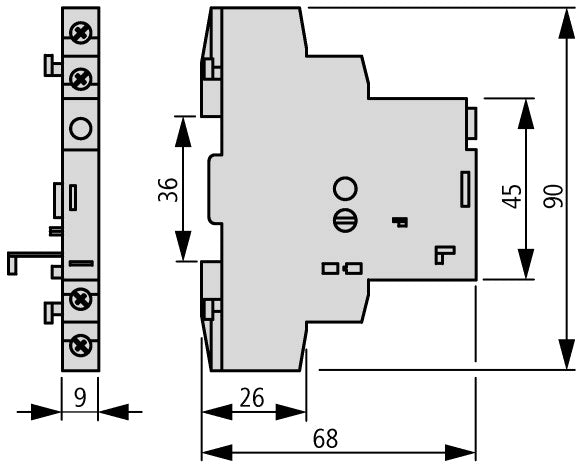

AGM2-10-PKZ0 Dimensions
