EATON - PKZM0 Motor Protector

PKZM0-0,25
Eaton Motor Protector

Price: $81.32

The Eaton PKZM0-0,25 XTPRP25BC1 is
a 3 phase thermal-magnetic motor
protective device incorporating adjustable
bimetal trips for motor overload protections
and magnetic trips to de-energize the motor
circuit in case of a short circuit.


Part No. PKZM0-0,25
Catalog No. 072731
Eaton Catalog No. XTPRP25BC1NL

Overload release adjustable from 0.16 - 0.25 AMPS

Other PKMZ0 Motor Protectors

Auxiliary Contacts:

Auxiliary Contact Blocks

Accessories:

Accessories

Tools Required:

Terminal Screw:

Pozidriv screwdriver size 2
Or
Standard screwdriver size 0.8 X 5.5 mm to 1 X 6 mm

View a data sheet

View Catalog Page


Eaton PKZM0-0,25 Motor Protector


Call To Order (717) 209-7100
Rated
Un-interrupted
Current
Setting Maximum HP Three phase Catalog No.
Overload
Releases
Short Circuit
Releases
200V 240V 480V 600V
0.25 0.1 - 0.16 3.5 In this range, select motor protector in accordance with the motor name plate full load current PKZM0-0,25

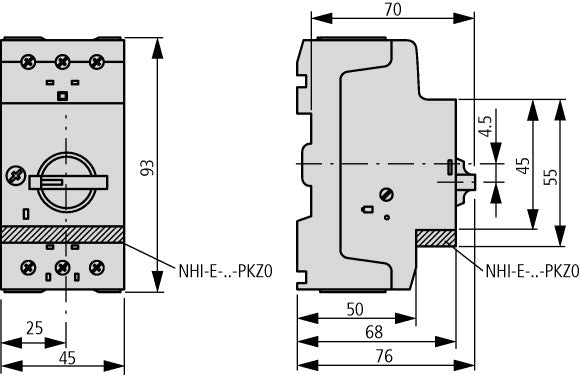

Eaton PKZM0-0,25 Dimensions
