DILA-31

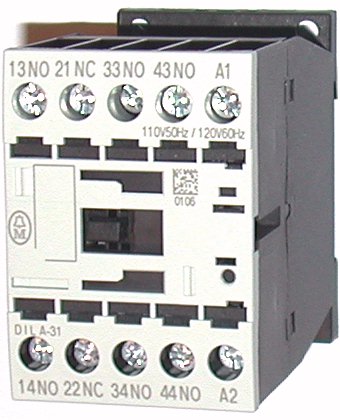

DILA-31 Klockner Moeller xStart Control Relays

Nationwide order desk and technical support:

The Klockner Moeller DILA-31 is a 4 pole IEC
rated Contactor Relay with 4
fixed contacts. It comes with 3NO and 1NC
contacts.
International Standard EN 50 011
Conforms to IEC 60947-5-1

TOOLS REQUIRED:

Pozidriv Screwdriver size 2

ACCESSORIES:

Auxiliary Contact Blocks

VIEW CATALOG PAGE

DILA-31 CONTACTOR RELAY

---

SELECTION CHART:

Distinctive No.	Auxiliary contacts		Coil Voltage / AC Voltage		Catalog No.
	NO	NC	50Hz	60Hz
31E	3	1	24V	24V	DILA-31(24V50/60Hz)
			110V	120V	DILA-31(110V50Hz, 120V60Hz)
			220V	240V	DILA-31(220V50Hz, 240V60Hz)

DILA-31 CONTACT SEQUENCE

DILA-31 DIMENSIONS
