Siemens Motor Starter Contactors - World Series

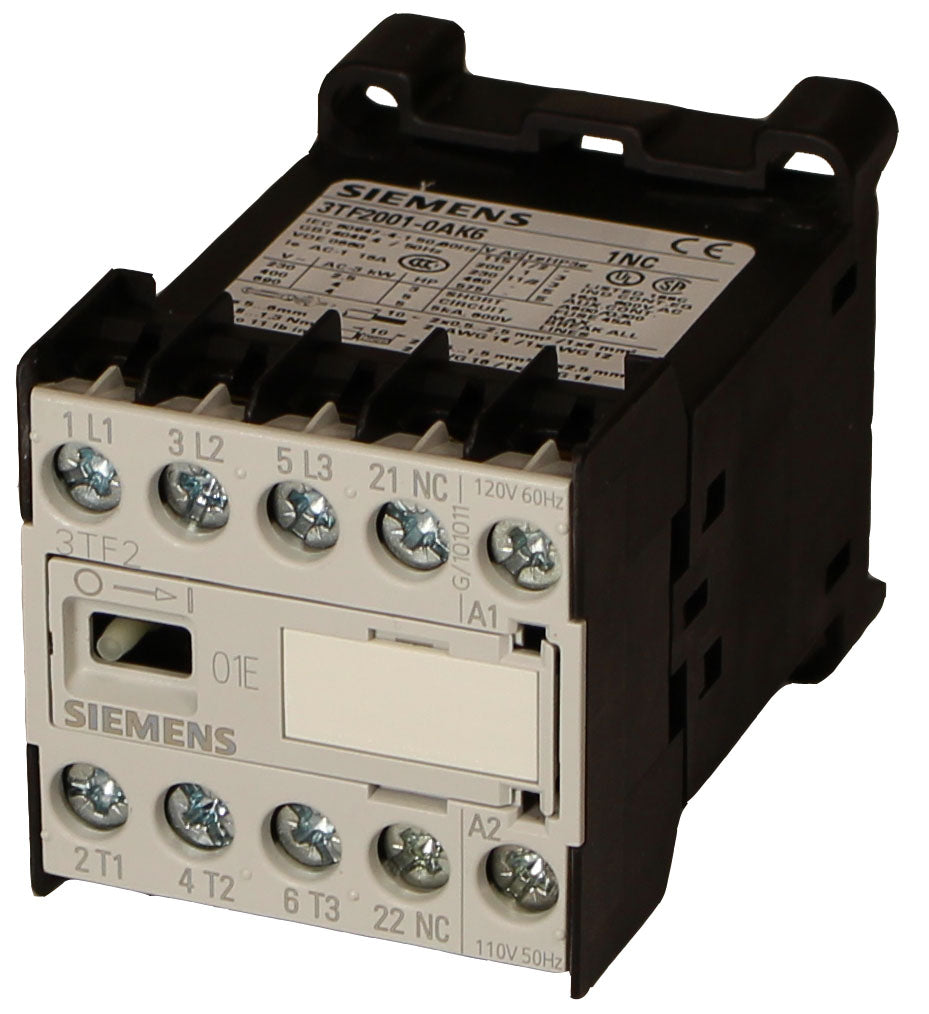

3TF2001-0A
SIEMENS
Contactor

Price: Price List

The Siemens 3TF2001-0A is a
3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at
230V and 5 HP at 460V. It comes
with 1NC auxiliary contact. 01E
Conforms to IEC 60946

AC operating coil voltage:

Options listed below

Other 3TF2 Contactors

Accessories:

Auxiliary Contact Blocks

Surge Suppressors

Overload Relays:

3UA7 Bimetal Overload Relays

pdfpicView a data sheet


3TF2001-0A Contact Sequence

3tf2001-0ac2-contactsequence

3TF2001-0A 3-Pole with AC Coil


Contactor Selection Chart:
For USA and Canada
Call To Order (717) 209-7100
Frame
Size
Amp
ratings
Three phase
HP ratings
Auxiliary
contacts
Coil Voltage / AC Voltage Catalog No.
UL/CSA AC3 AC1 230V 460V NO NC 50Hz 60Hz Screw terminals
S00 16 9 22 3 5 0 1 24V 24V 3TF2001-0AC2
110V 120V 3TF2001-0AK6
220V 240V 3TF2001-0AP6


Contactor Selection Chart:
Worldwide
Call To Order (717) 209-7100
Frame
Size
Amp
ratings
Three phase
HP ratings
Auxiliary
contacts
Coil Voltage / AC Voltage Catalog No.
UL/CSA AC3 AC1 230V 460V NO NC 50Hz 60Hz Screw terminals
S00 16 9 22 3 5 0 1 24V 24V 3TF2001-0AB0
20V 24V 3TF2001-0AC1
42V 50V 3TF2001-0AD0
42V 42V 3TF2001-0AD2
110V 132V 3TF2001-0AF0
100V 110V 3TF2001-0AF6
36V 42V 3TF2001-0AG0
92V 110V 3TF2001-0AG1
110V 110V 3TF2001-0AG2
48V 58V 3TF2001-0AH0
96V 115V 3TF2001-0AJ1
115V 115V 3TF2001-0AJ2
125V/127V 150V/152V 3TF2001-0AL0
100V 120V 3TF2001-0AK1
120V 120V 3TF2001-0AK2
230V 230V 3TF2001-0AL2
173V 208V 3TF2001-0AM1
208V 208V 3TF2001-0AM2
200V 220V 3TF2001-0AM6
220V 220V 3TF2001-0AN2
230V/220V 276V/264V 3TF2001-0AP0
200V 240V 3TF2001-0AP2
380V 460V 3TF2001-0AQ0
380V 380V 3TF2001-0AQ2
415V 500V 3TF2001-0AR0
440V 440V 3TF2001-0AR2
500V 600V 3TF2001-0AS0
- 277V 3TF2001-0AU1
400V/380V 480V/460V 3TF2001-0AV0
