3RT1026-1A Siemens Sirius Contactors


Call to order (717) 209-7100
or click on price to order

The Siemens 3RT1026-1A..0 / 3RT1026-1A
is a 3-phase IEC rated contactor used for
the control of electric motors. It is rated
7.5 HP at 230V and 15 HP at 460V.
Conforms to IEC 60946



Other 3RT Contactors

Tools Required:
Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:

Overload Relays:

Replacment Parts:


AC Operating Coil Voltage/Contactor Options Listed Below:

3RT1026-1A Contactor Selection Chart:
3-Phase
Motor
Horsepower
Built-In
Auxiliary
Contacts
Cont.
Amps
AC Coil
Voltage
Catalog #
5 hp @ 200 V
5 hp @ 230 V
10 hp @ 460 V
15 hp @ 575 V
- 35 24 3RT1026-1AC20
120 3RT1026-1AK60
208 3RT1026-1AM20
240 3RT1026-1AP60
480 3RT1026-1AV60
Coil Power Consumption: Inrush: 69 VA., Sealed: 7.5 VA.
Maximum Wire Size: 2 x 10 AWG, 1 x 8 AWG

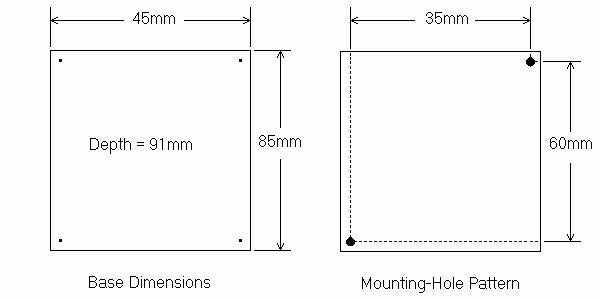

Dimensions:



These units have track-mounting clips for 35mm DIN-rail as standard.
Front-mounted auxiliary contacts add an extra 49mm to the depth.
Side-mounted contacts add an extra 10mm to the side, per each block.
