Siemens Sirius Motor Starter Contactors

3RT1026-1A..0
SIEMENS SIRIUS
Contactor

Price: $148.00

The Siemens 3RT1026-1A..0 / 3RT1026-1A
is a 3-phase IEC rated contactor used for
the control of electric motors. It is rated
7.5 HP at 230V and 15 HP at 460V.
Conforms to IEC 60946

AC operating coil voltage:

Options listed below

Other 3RT Contactors

Tools Required:

Terminal Screw:
Pozidriv Screwdriver size 2
pzoidrivscrewdriver

Accessories:

Auxiliary Contact Blocks

Surge Suppressors

Mechanical Interlocks

Overload Relays:

3RU1126 Thermal Overload Relays

3RB1026 Electronic Overload Relays

Replacment Parts:

3RT Contactor Replacement Coils

3RT Contactor Repair Kits

pdfpicView a data sheet


3RT1026-1A..0 3-Pole with AC Coil


Contactor Selection Chart:
USA and Canada
Call To Order (717) 209-7100
Frame
Size
Amp
ratings
Three phase
HP ratings
Coil Voltage / AC Voltage Catalog No.
AC3 AC1 230V 460V 50Hz 60Hz Screw terminals
S0 25 40 7.5 15 24V 24V 3RT1026-1AC20
110V 120V 3RT1026-1AK60
220V 240V 3RT1026-1AP60


Contactor Selection Chart:
Worldwide
Call To Order (717) 209-7100
Frame
Size
Amp
ratings
Three phase
HP ratings
Coil Voltage / AC Voltage Catalog No.
AC3 AC1 230V 460V 50Hz 60Hz Screw terminals
S0 25 40 7.5 15 24V - 3RT1026-1AB00
42V - 3RT1026-1AD00
48V 48V 3RT1026-1AD20
110V - 3RT1026-1AF00
110V 110V 3RT1026-1AG20
48V - 3RT1026-1AH00
48V 48V 3RT1026-1AH20
230V 230V 3RT1026-1AL20
208V 208V 3RT1026-1AM20
220V 220V 3RT1026-1AN20
230V - 3RT1026-1AP00
- 600V 3RT1026-1AT60
- 277V 3RT1026-1AU60
400V - 3RT1026-1AV00
- 480V 3RT1026-1AV60

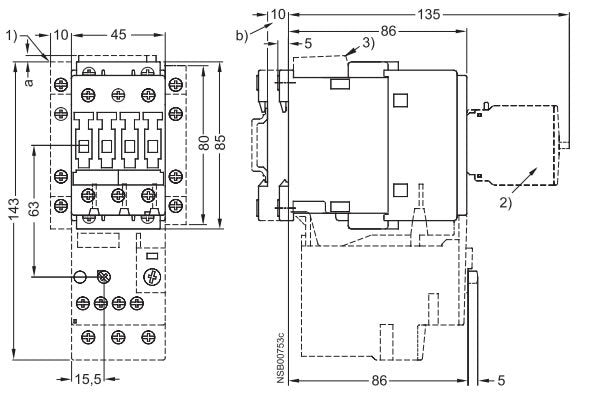

3RT1026-1A..0 Dimensions:

3rt1026-1a-dimensions
