Siemens Sirius- 3RT1046-1A..0 motor starters - contactors

The Siemens 3RT1046-1A..0 / 3RT1046-1A
is a 3-phase IEC rated contactor used for
the control of electric motors. It is rated
30 HP at 230V and 75 HP at 460V.
Conforms to IEC 60946

3RT1046-1A..0


USA and Canada Selection Chart:

Frame
Size
Amp
ratings
Three phase
HP ratings
Coil Voltage / AC Voltage Catalog No.
AC3 AC1 230V 460V 50Hz 60Hz
S3 95 120 30 75 24V 24V 3RT1046-1AC20
110V 120V 3RT1046-1AK60
220V 240V 3RT1046-1AP60

Worldwide Selection Chart:

Frame
Size
Amp
ratings
Three phase
HP ratings
Coil Voltage / AC Voltage Catalog No.
AC3 AC1 230V 460V 50Hz 60Hz
S3 95 120 30 75 24V - 3RT1046-1AB00
42V 42V 3RT1046-1AD00
48V 48V 3RT1046-1AD20
110V 110V 3RT1046-1AF00
110V 110V 3RT1046-1AG20
48V - 3RT1046-1AH00
48V 48V 3RT1046-1AH20
230V 230V 3RT1046-1AL20
208V 208V 3RT1046-1AM20
220V 220V 3RT1046-1AN20
230V - 3RT1046-1AP00
- 600V 3RT1046-1AT60
- 277V 3RT1046-1AU60
400V - 3RT1046-1AV00
- 480V 3RT1046-1AV60

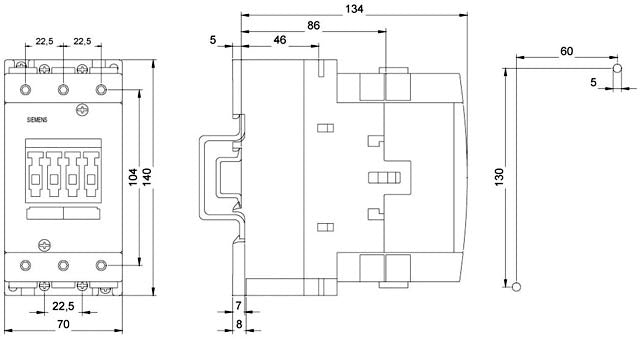

3RT1046-1A..0 Dimensions
