Siemens Sirius 3RT1036-1A Contactor	Special Pricing Available for Dealers and Service/Repair Firms

Nationwide order desk and technical support:

Description: Siemens Sirius 3RT1036-1A is a heavy-duty industrial motor starter contactor, suitable for starting 3-phase motors up to 15 HP @ 230 volts and 40 HP @ 460 volts. Auxiliary contacts can be front or side mounted. Plug-in overload relays are also available.
3RT1036-1A Contactor Selection Chart:
3-Phase Motor Horsepower	Built-In Auxiliary Contacts	Cont. Amps	AC Coil Voltage	Catalog #
15 hp @ 200 V 15 hp @ 230 V 40 hp @ 460 V 50 hp @ 575 V	-	50	24	3RT1036-1AC20
			120	3RT1036-1AK60
			208	3RT1036-1AM20
			240	3RT1036-1AP60
			480	3RT1036-1AV60
Coil Power Consumption:        Inrush: 166 VA.,         Sealed: 12.6 VA.
Maximum Wire Size:        2 x 2 AWG,         1 x 2 AWG
Click here for:          pricing         auxiliary contacts         plug-in overload relays

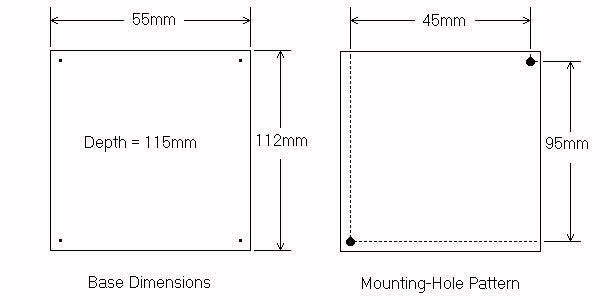

Dimensions: These units have track-mounting clips for 35mm DIN-rail as standard. Front-mounted auxiliary contacts add an extra 49mm to the depth. Side-mounted contacts add an extra 10mm to the side, per each block.
