PKZM0-12 Eaton Motor Protector
The Eaton PKZM0-12 XTPR012BC1 is
a 3 phase thermal-magnetic motor
protective device incorporating adjustable
bimetal trips for motor overload protections
and magnetic trips to de-energize the motor
circuit in case of a short circuit.
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
View Data Sheet
SELECTION CHART:
| Rated Un-interrupted Current | Setting | Maximum HP Three phase | Catalog No. | ||||
|---|---|---|---|---|---|---|---|
| Overload Releases | Short Circuit Releases | 200V | 240V | 480V | 600V | ||
| 12 | 8-12 | 168 | 3 | 3 | 7.5 | 10 | PKZM0-12 |

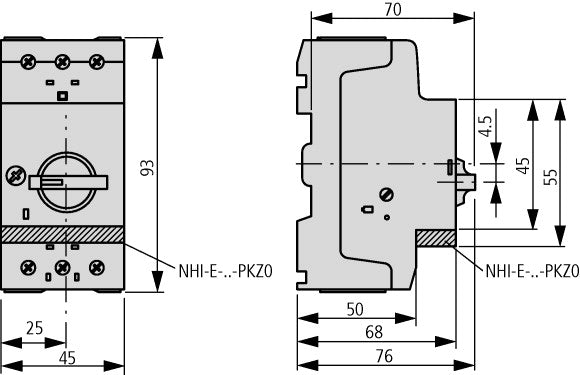

EATON PKZM0-12 Dimensions
