EATON PKZM0-4
In stock, can ship today!
717-209-7100
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/controlparts-logo.jpg?v=1602078896)
Call to Order 717-209-7100
Same Day Shipping
PKZM0-4 Eaton Motor Protector
The Eaton PKZM0-4 XTPR004BC1 is
a 3 phase thermal-magnetic motor
protective device incorporating adjustable
bimetal trips for motor overload protections
and magnetic trips to de-energize the motor
circuit in case of a short circuit.
Options listed below
Tools Required:
Accessories:
View Data Sheet
SELECTION CHART:
Rated Un-interrupted Current | Setting | Maximum HP Three phase | Catalog No. | ||||
---|---|---|---|---|---|---|---|
Overload Releases | Short Circuit Releases | 200V | 240V | 480V | 600V | ||
4 | 2.5 - 4 | 56 | 0.75 | 0.75 | 2 | 3 | PKZM0-4 |

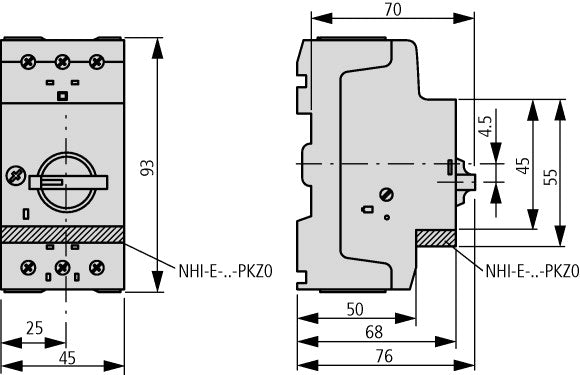

EATON PKZM0-4 Dimensions
![](/klockner.moeller/p/pkz/pkzm0-4.dimensions.jpg)
