PKZM0-6,3 Eaton Motor Protector
The Eaton PKZM0-6,3 XTPR6P3BC1 is
a 3 phase thermal-magnetic motor
protective device incorporating adjustable
bimetal trips for motor overload protections
and magnetic trips to de-energize the motor
circuit in case of a short circuit.
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
View Data Sheet
SELECTION CHART:
| Rated Un-interrupted Current | Setting | Maximum HP Three phase | Catalog No. | ||||
|---|---|---|---|---|---|---|---|
| Overload Releases | Short Circuit Releases | 200V | 240V | 480V | 600V | ||
| 6.3 | 4 - 6.3 | 8 | 1 | 1.5 | 3 | 5 | PKZM0-6,3 |

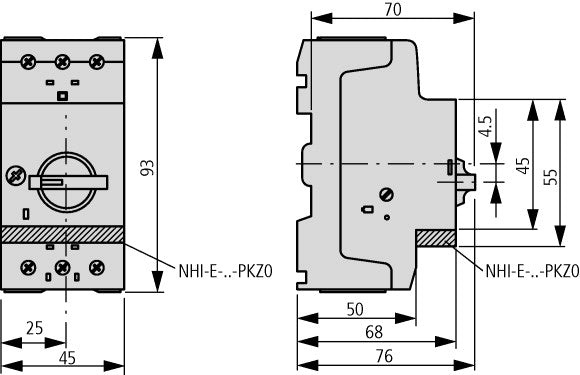

EATON-PKZM0-6,3 Dimensions
