NS1 Disconnect Switches, no trip unit ( Line + load lugs included ) |
| Amps |
Catalog # |
Price |
| 63 |
NS1-63-NA photo
|
356.00 |
| 100 |
NS1-100-NA photo
|
442.00 |
| 125 |
NS1-125-NA photo
|
584.00 |
| |
NZMN1 Breakers, Adjustable Thermal Trip
for use as motor protectors. ( Line + load lugs included ) |
Thermal
Trip |
Magnetic
Trip |
Catalog # |
Price |
| 15 - 20 |
350 |

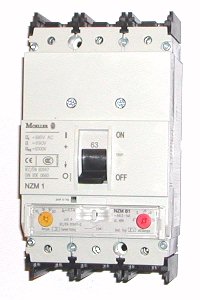

NZMN1-A20-NA photo
|
438.00 |
| 20 - 25 |
350 |
NZMN1-A25-NA photo
|
| 25 - 32 |
350 |
NZMN1-A32-NA photo
|
| 32 - 40 |
320 - 400 |
NZMN1-A40-NA photo
|
| 40 - 50 |
300 - 500 |
NZMN1-A50-NA photo
|
| 50 - 63 |
380 - 630 |
NZMN1-A63-NA photo
|
| 63 - 80 |
480 - 800 |
NZMN1-A80-NA photo
|
476.00 |
| 80 - 100 |
600 - 1000 |
NZMN1-A100-NA photo
|
534.00 |
| 100 - 125 |
750 - 1250 |
NZMN1-A125-NA photo
|
881.00 |
| |
NZMN1 Breakers, Fixed Thermal Trip
for use as branch circuit protection ( Line + load lugs included ) |
Thermal
Trip |
Magnetic
Trip |
Catalog # |
Price |
| 15 |
350 |
NZMN1-AF15-NA |
438.00 |
| 20 |
350 |
NZMN1-AF20-NA |
| 25 |
350 |
NZMN1-AF25-NA |
| 30 |
350 |
NZMN1-AF30-NA |
| 35 |
320 - 400 |
NZMN1-AF35-NA |
| 40 |
320 - 400 |
NZMN1-AF40-NA |
| 45 |
300 - 500 |
NZMN1-AF45-NA |
| 50 |
300 - 500 |
NZMN1-AF50-NA |
| 60 |
380 - 630 |
NZMN1-AF60-NA |
| 70 |
480 - 800 |
NZMN1-AF70-NA |
476.00 |
| 80 |
480 - 800 |
NZMN1-AF80-NA |
| 90 |
600 - 1000 |
NZMN1-AF90-NA |
534.00 |
| 100 |
600 - 1000 |
NZMN1-AF100-NA |
| 110 |
750 - 1250 |
NZMN1-AF110-NA |
881.00 |
| 125 |
750 - 1250 |
NZMN1-AF125-NA |
| |
NZMN1 Breakers, with Magnetic Trip Only
for use in combination starters with separate overload relays
( Line + load lugs included ) |
Continuous
Amps |
Magnetic
Trip |
Catalog # |
Price |
| 1,2 |
8 - 14 |
NZMN1-S1,2-CNA |
- |
| 2 |
12,8 - 22,4 |
NZMN1-S2-CNA |
| 3 |
19,2 - 33,6 |
NZMN1-S3-CNA |
| 5 |
32 - 56 |
NZMN1-S5-CNA |
| 8 |
48 - 84 |
NZMN1-S8-CNA |
| 12 |
80 - 140 |
NZMN1-S12-CNA |
| 18 |
128 - 224 |
NZMN1-S18-CNA |
| 26 |
200 - 350 |
NZMN1-S26-CNA |
| 33 |
256 - 448 |
NZMN1-S33-CNA |
| 40 |
320 - 560 |
NZMN1-S40-CNA |
| 50 |
400 - 700 |
NZMN1-S50-CNA |
| 63 |
504 - 882 |
NZMN1-S63-CNA |
| 80 |
640 - 1120 |
NZMN1-S80-CNA |
- |
| 100 |
800 - 1250 |
NZMN1-S100-CNA |
- |
| |
| Accessories for NZMN1 series |
| Description |
Catalog # |
Price |
black/gray door handle
padlockable |
NZM1-XTVDV-NA photo
|
93.40 |
red/yellow door handle
padlockable |
NZM1-XTVDVR-NA |
101.40 |
black/gray unit handle
padlockable (for MCC) |
NZM1-XDTV-NA photo
|
94.10 |
red/yellow unit handle
padlockable (for MCC) |
NZM1-XDTVR-NA |
101.40 |
drive shaft extension
mounting depth up to 400mm |
NZM1/2-XV4 photo
|
10.20 |
drive shaft extension
mounting depth up to 600mm |
NZM1/2-XV6 photo
|
20.40 |
standard auxiliary contact.
max of 1 contact. |
M22-K10 photo
(1 N.O. contact) |
5.00 |
M22-K01 photo
(1 N.C. contact) |
early-make auxiliary contacts
2 - N.O. |
NZM1-XHiV |
56.20 |
| undervoltage trip |
24 V 50/60 |
NZM1-XU24AC |
124.80 |
| 110-130V 50/60 |
NZM1-XU110-130AC |
| 208-240v 50/60 |
NZM1-XU208-240AC |
| 480-525v 50/60 |
NZM1-XU480-525AC |
| 24 VDC |
NZM1-XU24DC |
undervoltage trip
with 2 - N.O.
early-make contacts |
24 V 50/60 |
NZM1-XUHiV24AC |
161.30 |
| 110-130V 50/60 |
NZM1-XUHiV110-130AC |
| 208-240v 50/60 |
NZM1-XUHiV208-240AC |
| 480-525v 50/60 |
NZM1-XUHiV480-525AC |
| 24 VDC |
NZM1-XUHiV24DC |
| shunt trip |
24 V AC/DC |
NZM1-XA24AC/DC |
109.50 |
| 110-130V AC/DC |
NZM1-XA110-130AC/DC |
| 208-250v AC/DC |
NZM1-XA208-250AC/DC |
| 480-525v AC/DC |
NZM1-XA480-525AC/DC |
shunt trip
with 1 - N.O.
early-make contact |
24 V AC/DC |
NZM1-XAHiV24AC/DC |
133.60 |
| 110-130V AC/DC |
NZM1-XAHiV110-130AC/DC |
| 208-250v AC/DC |
NZM1-XAHiV208-250AC/DC |
| 480-525v AC/DC |
NZM1-XAHiV480-525AC/DC |
side-wall drive mechanism
w/rotary handle on left side |
NZM1-XS-L |
136.50 |
side-wall drive mechanism
w/rotary handle on right side |
NZM1-XS-R |
side-wall drive mechanism
w/rotary handle on left side
w/mounting bracket |
NZM1-XSM-L |
190.50 |
side-wall drive mechanism
w/rotary handle on right side
w/mounting bracket |
NZM1-XSM-R |
| |
