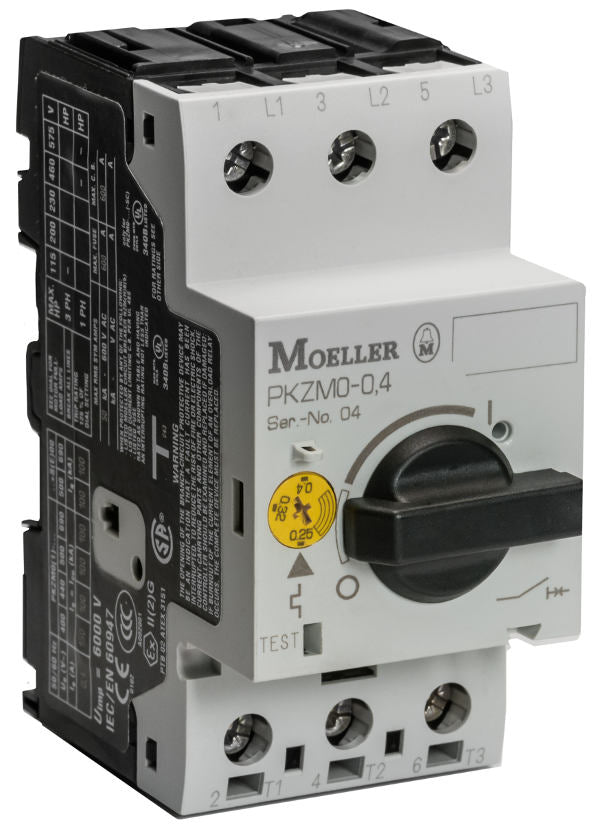

PKZM0-0,4 Klockner Moeller Motor Protector
The Klockner Moeller PKZM0-0,4 is a
3 phase thermal-magnetic motor protective device
incorporating adjustable bimetal trips for motor
overload protections and magnetic trips to de-energize
the motor circuit in case of a short circuit.
Options listed below
Overload release adjustable from 0.25 - 0.4 AMPS
Plug-In Contactors:
Auxiliary Contacts:
Accessories:
View Data Sheet
PKZM0-0,4 Motor Protector
Selection Chart:
| Rated Un-interrupted Current | Setting | Maximum HP Three phase | Catalog No. | ||||
|---|---|---|---|---|---|---|---|
| Overload Releases | Short Circuit Releases | 200V | 240V | 480V | 600V | ||
| 0.4 | 0.25 - 0.4 | 5.6 | In this range, select motor protector in accordance with the motor name plate full load current | PKZM0-0,4 | |||
PKZM0-0,4 Dimensions
