klockner moeller motor protector

PKZM0-1,6
KLOCKNER MOELLER ELECTRIC

Price: $85.88

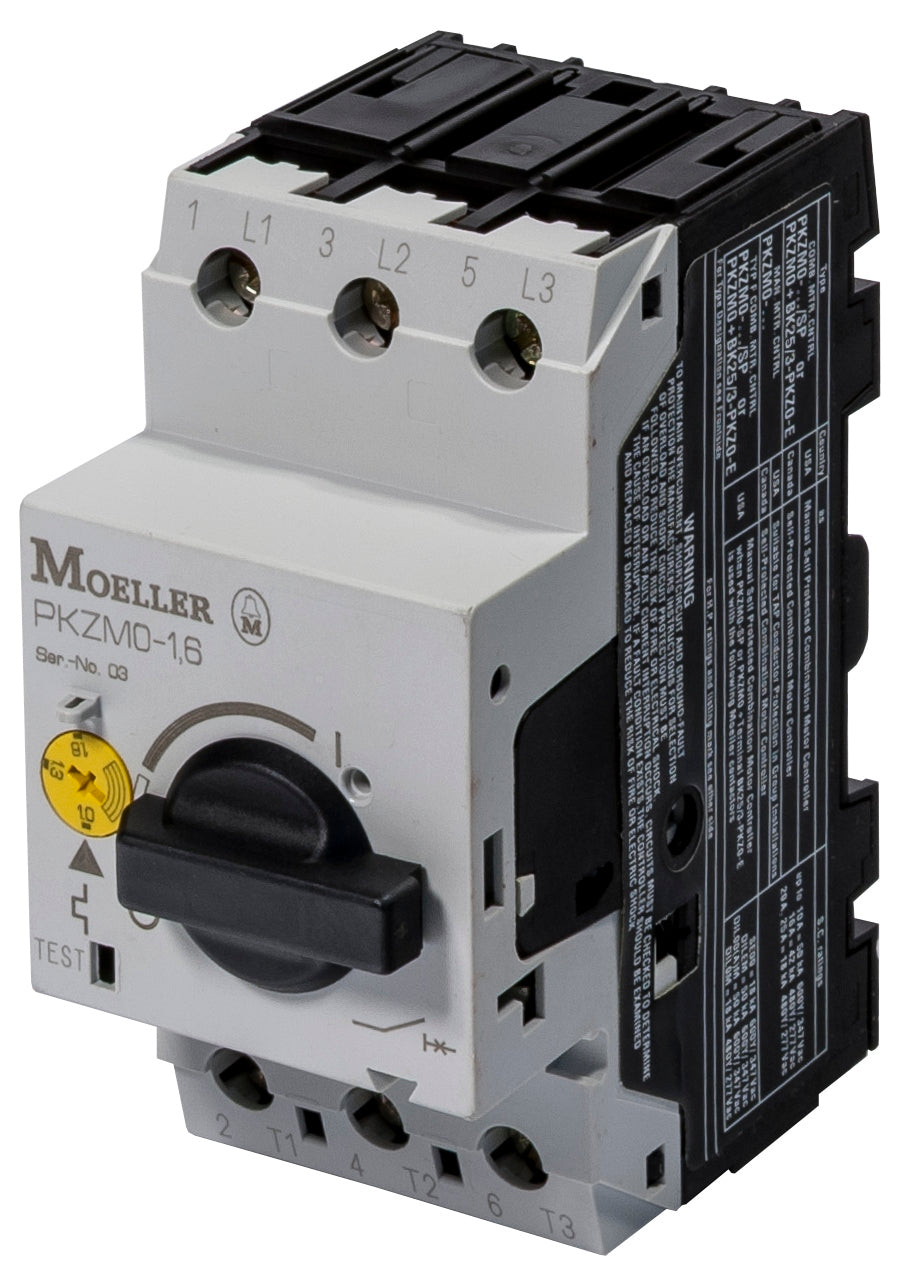

The Klockner Moeller PKZM0-1,6 is a
3 phase thermal-magnetic motor protective device
incorporating adjustable bimetal trips for motor
overload protections and magnetic trips to de-energize
the motor circuit in case of a short circuit.

Options listed below

Overload release adjustable from 1 - 1.6 AMPS

Plug-In Contactors:

Auxiliary Contacts:

Accessories:

pdfpicView Data Sheet

PKZM0-1,6

Request More Information for PKZM0-1,6

Name*
Email*
Phone
Message*

PKZM0-1,6 Motor Protector


Selection Chart: Call To Order (717) 209-7100

Rated Un-interrupted CurrentSettingMaximum HP Three phaseCatalog No.
Overload ReleasesShort Circuit Releases200V240V480V600V
1.61 - 1.622--0.750.75PKZM0-1,6

PKZM0-1,6 Dimensions
