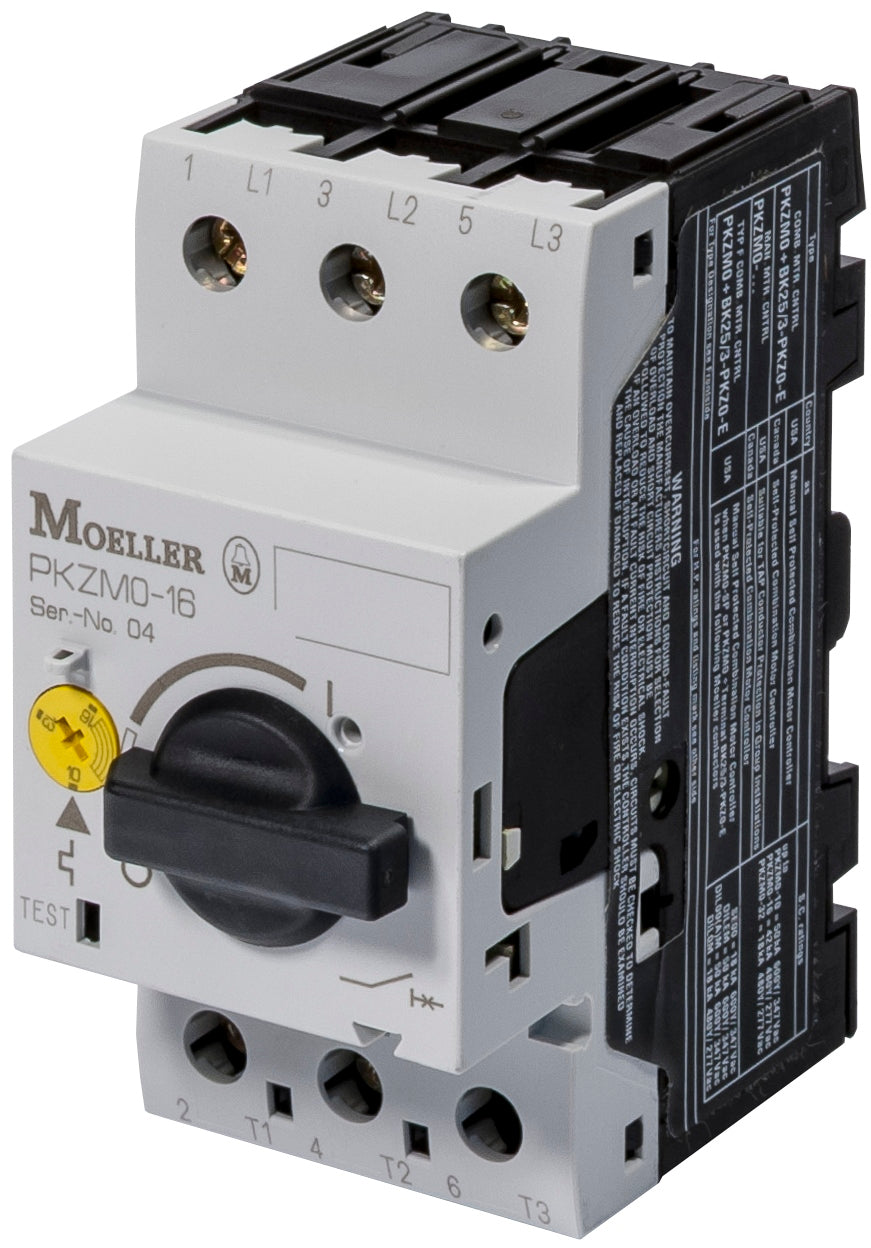

PKZM0-16 Klockner Moeller Motor Protector
The Klockner Moeller PKZM0-16 is a 3 phase thermal-magnetic motor protective device incorporating adjustable bimetal trips for motor overload protections and magnetic trips to de-energize the motor circuit in case of a short circuit.
Options listed below
Overload release adjustable from 1 - 16 AMPS
Plug-In Contactors:
Auxiliary Contacts:
Accessories:
View Data Sheet
PKZM0-16 Motor Protector
Selection Chart:
| Rated Un-interrupted Current | Setting | Maximum HP Three phase | Catalog No. | ||||
|---|---|---|---|---|---|---|---|
| Overload Releases | Short Circuit Releases | 200V | 240V | 480V | 600V | ||
| 16 | 10-16 |
224 | 3 | 5 | 10 | 10 | PKZM0-16 |
PKZM0-16 Dimensions
