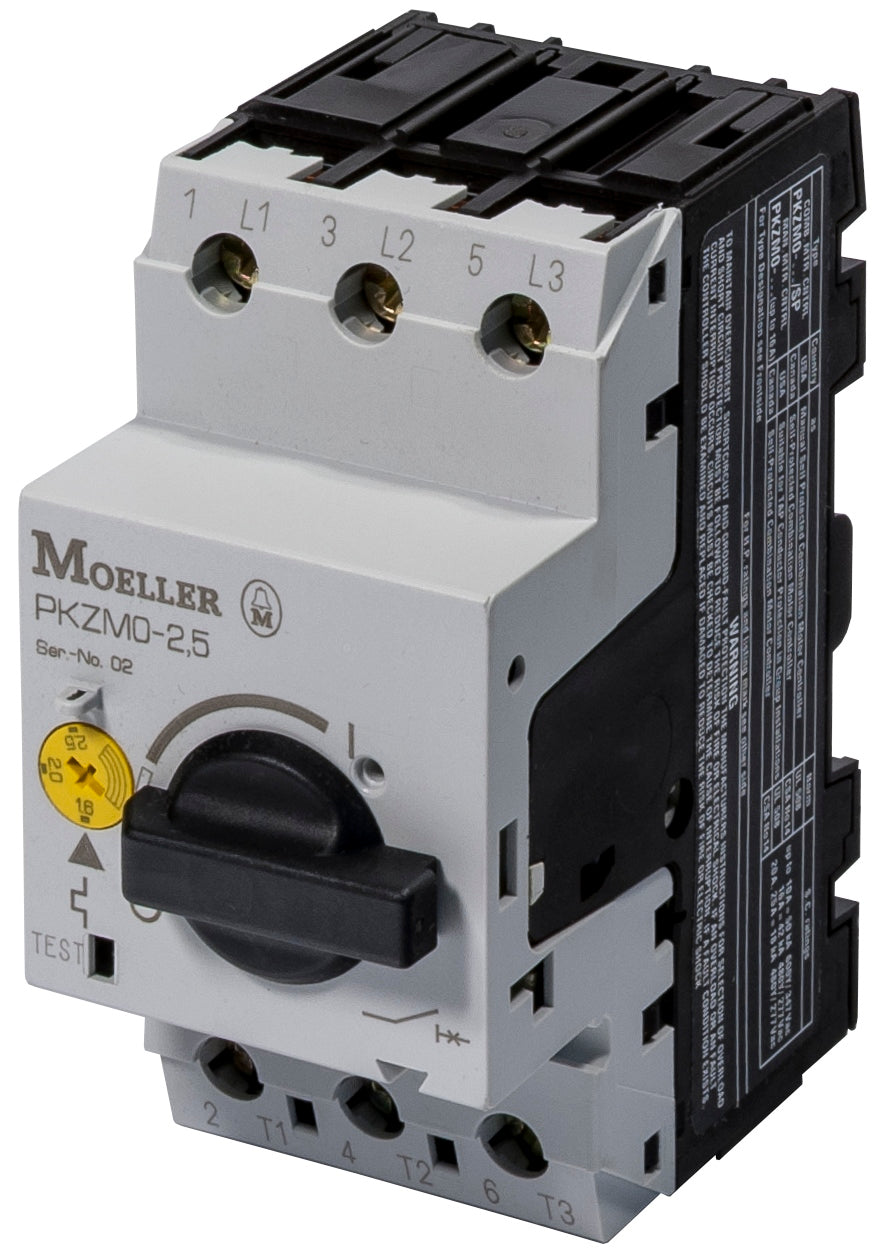

PKZM0-2,5 Klockner Moeller Motor Protector
The Klockner Moeller PKZM0-2,5 is a
3 phase thermal-magnetic motor protective device
incorporating adjustable bimetal trips for motor
overload protections and magnetic trips to de-energize
the motor circuit in case of a short circuit.
Options listed below
Overload release adjustable from 1.6 - 2.5 AMPS
Plug-In Contactors:
Auxiliary Contacts:
Accessories:
View Data Sheet
PKZM0-2,5 Motor Protector
Selection Chart:
Rated Un-interrupted Current | Setting | Maximum HP Three phase | Catalog No. | ||||
---|---|---|---|---|---|---|---|
Overload Releases | Short Circuit Releases | 200V | 240V | 480V | 600V | ||
2.5 | 1.6 - 2.5 | 35 | 0.5 | 0.5 | 1 | 1.5 | PKZM0-2,5 |
PKZM0-2,5 Dimensions
![](/klockner.moeller/p/pkz/pkzm0-2,5.dimensions.jpg)
