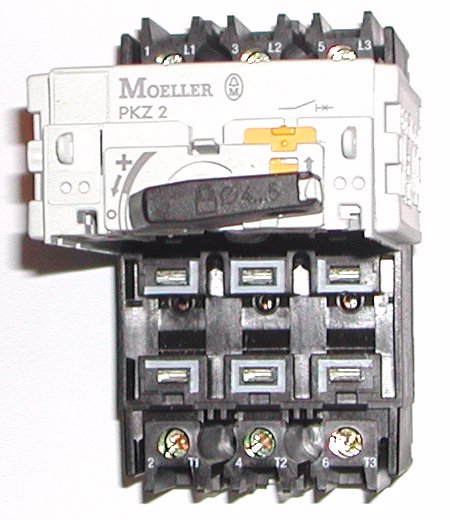

PKZ2 Motor Protectors:
complete units, includes switch and trip unit. |
| Amp Range |
Catalog # |
Price |
|
| 0.4 - 0.6 |
PKZ2/ZM-0,6 photo
|
473.00 |
| 0.6 - 1 |
PKZ2/ZM-1 photo
|
| 1 - 1.6 |
PKZ2/ZM-1,6 photo
|
473.00 |
| 1.6 - 2.4 |
PKZ2/ZM-2,4 photo
|
| 2.4 - 4 |
PKZ2/ZM-4 photo
|
| 4 - 6 |
PKZ2/ZM-6 photo
|
| 6 - 10 |
PKZ2/ZM-10 photo
|
| 10 - 16 |
PKZ2/ZM-16 photo
|
| 16 - 27 |
PKZ2/ZM-25 photo
|
536.00 |
| 24 - 32 |
PKZ2/ZM-32 photo
|
545.00 |
| 32 - 42 |
PKZ2/ZM-40 photo
|
626.00 |
| |
Components for PKZ2:
includes plug-in trip unit only |
| Amps |
Catalog # |
Price |
|
| 0.4 - 0.6 |
ZM-0,6-PKZ2 photo
|
224.00 |
| 0.6 - 1 |
ZM-1-PKZ2 photo
|
| 1 - 1.6 |
ZM-1,6-PKZ2 photo
|
224.00 |
| 1.6 - 2.4 |
ZM-2,4-PKZ2 photo
|
| 2.4 - 4 |
ZM-4-PKZ2 photo
|
| 4 - 6 |
ZM-6-PKZ2 photo
|
| 6 - 10 |
ZM-10-PKZ2 photo
|
| 10 - 16 |
ZM-16-PKZ2 photo
|
| 16 - 27 |
ZM-25-PKZ2 photo
|
287.00 |
| 24 - 32 |
ZM-32-PKZ2 photo
|
296.00 |
| 32 - 42 |
ZM-40-PKZ2 photo
|
377.00 |
| switch unit |
PKZ2 photo
|
249.00 |
| |
Plug-In Contactors for PKZ2:
Rated at 15 Hp @ 230 Volts and 30 HP @ 460 Volts |
| Aux. Contacts |
Catalog # |
Price |
|
| 1 N.O. + 1 N.C. |
S-PKZ2 photo
with AC coil |
496.00 |
1 N.O.
+ surge suppressor |
S-G-PKZ2 photo
with DC coil |
496.00 |
mounting plate for
PKZ2 + S-PKZ2 |
C-PKZ2 photo
|
48.40 |
| |
| Auxiliary Contacts for PKZ2 and S-PKZ2: |
| Description |
Catalog # |
Price |
|
| 1 N.O. + 1 N.C. |
NHi11-PKZ2 photo
|
78.00 |
| 2 N.O. + 2 N.C. |
NHi22-PKZ2 photo
|
84.00 |
1 N.O. + 1 N.C.
for PKZ2 |
NHi11S-PKZ2 photo
full-length format |
124.00 |
2 N.O. + 2 N.C.
for PKZ2 |
NHi22S-PKZ2 photo
full-length format |
128.00 |
1 N.O. + 1 N.C.
for PKZ2
1 N.O. + 1 N.C.
for S-PKZ2 |
NHi2-11S-PKZ2 photo
full-length format |
148.00 |
1 N.O. + 1 N.C.
trip indicating |
AGM2-11-PKZ2 photo
|
124.00 |
1 N.O. + 1 N.C.
for S-PKZ2 |
Hi11-S-PKZ2 photo
included w/contactor |
78.00 |
2 N.O.
for S-PKZ2 |
Hi20-S-PKZ2 photo
|
78.00 |
| |
| Accessories for PKZ2: |
| Description |
Catalog # |
Price |
|
| under-voltage trip |
U-PKZ2 photo
for AC voltage |
184.00 |
shunt trip
24-60 VDC
24-48 VAC |
A-PKZ2-A |
199.00 |
shunt trip
110-250 VDC
110-240 VAC |
A-PKZ2-B |
shunt trip
380-600 VAC |
A-PKZ2-C |
fuse-less
current limiter |
CL-PKZ2 photo
|
185.00 |
remote control
motor-drive |
RE-PKZ2 |
297.00 |
remote control
motor-drive |
RS-PKZ2 |
old-style
remote control
motor-drive |
R-PKZ2 photo
120 Volts only
while supplies last |
150.00 |
| black door handle |
H-PKZ2 photo
PKZ2-XH
|
349.00 |
| red door handle |
RH-PKZ2 photo
PKZ2-XRH
|
349.00 |
| extension shaft |
A-H-PKZ2 photo
PKZ2-XAH
|
89.00 |
| oversize terminal lugs |
BK50/3-PKZ2 photo
|
27.20 |
| busbar kit |
B3.1/2-PKZ2 photo
|
34.00 |
| busbar kit |
B3.1/3-PKZ2 photo
|
40.80 |
| replacement coil |
J-S-PKZ2 photo
|
128.00 |
| separate mount bracket |
EZ-PKZ2 photo
|
51.00 |
| mechanical interlock |
MV-PKZ2 photo
|
46.70 |
| |
