DIL4AM145 Moeller Electric

Stocking Klockner Moeller, Siemens, Allen-Bradley	Lancaster, PA (717) 209-7100
Klockner Moeller Electric DIL4AM145	Same Day Shipping

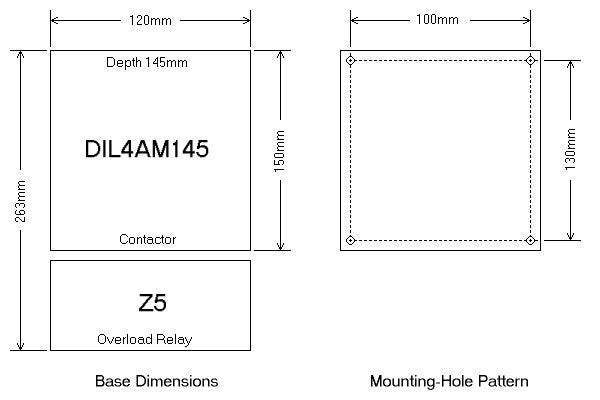

MOELLER ELECTRIC DIL4AM145 Call to order (717) 209-7100 or click on price to place in cart KLOCKNER MOELLER ELECTRIC DIL4AM145 Other DIL M Contactors TOOLS REQUIRED: Pozidriv Screwdriver size 2 ACCESSORIES: Auxiliary Contact Blocks OVERLOAD RELAYS: Z5 Overload Relays REPLACEMENT PARTS: J-DILM replacement coils DIL4AM145 DIMENSIONS: Replacement notes: The original Klockner Moeller DIL4M145 series is replaced by Moeller Electric's new DILM150 series. The DILM150 is a good replacement and is a bit smaller than the original. The mounting holes do not line up. A little extra depth is needed. Moeller also offers the new plug-in overloads series ZB150 to fit the new DILM150.
DILM150 Contactor Selection Chart: Always specify coil voltage.
3-Phase Motor Horsepower	Cont. Amps	Built-In Auxiliary Contacts	Catalog # Old / New
40 hp @ 200 V 60 hp @ 230 V 125 hp @ 460 V 150 hp @ 575 V	180		DIL4AM145 DILM150

MOELLER ELECTRIC DIL4AM145
