DILR-40, DILR-22, DILR-31 Moeller Electric, replaced by DILA-40, DILA-22, DILA-31.

Replacing the Moeller DIL R series control relays with the new DIL A series, with dimension drawings.

Moeller Electric xStart
DIL R > DIL A<

Replacement notes:

The original Klockner Moeller DILR series is replaced by Moeller Electric's new DILA series. The DILA is a perfect replacement and even the mounting holes line up.

DILA Contactor Selection Chart:
Always specify coil voltage.
Built-In
Contacts
Catalog #
Old / New
4 - N.O. DILR40
DILA-40
3 - N.O. & 1 - N.C. DILR31
DILA-31
2 - N.0. & 2 - N.C. DILR22
DILA-22

Click here for:          pricing         add-on contact blocks

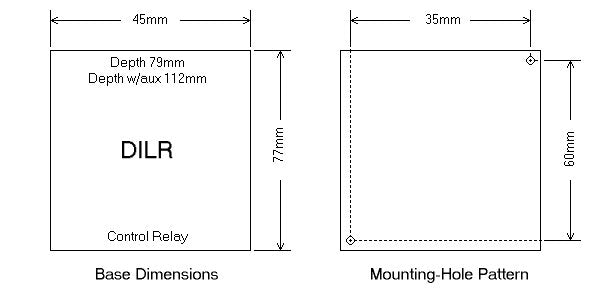

Original DIL R:

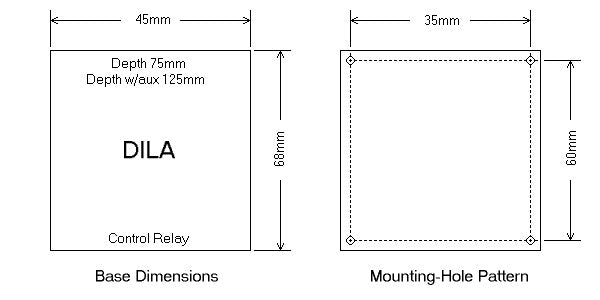

New DIL A:
