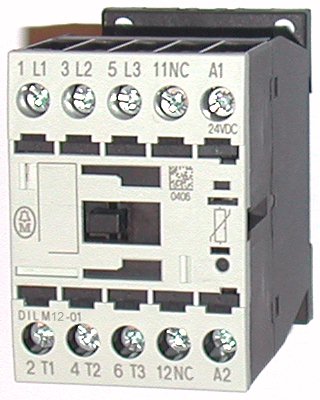

DILM12-01 (24VDC)
In stock, can ship today!
717-209-7100
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/controlparts-logo.jpg?v=1602078896)
Call to Order 717-209-7100
Same Day Shipping
DILM12-01 (24VDC) KLOCKNER MOELLER XSTART CONTACTORS
The Klockner Moeller DILM12-01(24VDC)
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 10 HP at 460V. It comes with
1NC auxiliary contact.
Conforms to IEC 60947
Options listed below
AUXILIARY CONTACTS:
Auxiliary Contacts
TOOLS REQUIRED:
Pozidriv Screwdriver size 2
SURGE SUPPRESSORS:
Surge Suppressors
OVERLOAD RELAYS:
ZB12 Overload Relays
VIEW DATA SHEET
DILM12-01(24V50/60HZ)
SELECTION CHART:
Amp ratings |
Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / DC Voltage | Catalog No. | ||
---|---|---|---|---|---|---|
AC1 | 230V | 460V | NO | NC | ||
20 | 3 | 10 | 0 | 1 | 24VDC | DILM12-01(24VDC) |
DILM12-01(24VDC) CONTACT SEQUENCE
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/DILM12-01_164a7475-e4fe-420c-ace3-6009be2b294f_480x480.jpg?v=1587997943)
DILM12-01(24VDC) DIMENSIONS
![](https://controlparts.com/moeller.electric.xstart/p/dil/dilm9-01-dimensions.jpg)
