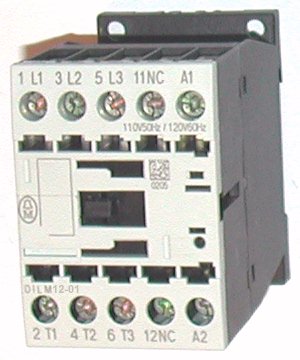

DILM12-01 Klockner Moeller xStart Contactors
The Klockner Moeller DILM12-01
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 10 HP at 460V. It comes with
1NC auxiliary contact.
Conforms to IEC 60947
AC/DC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
Overload Relays:
DILM12-01
AC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 3 | 10 |
0 | 1 | 24V50HZ/60HZ | DILM12-01(24V50HZ/60HZ) |
| 110V50HZ, 120V60HZ | DILM12-01(110V50HZ, 120V60HZ) | ||||
| 208V50/60HZ | DILM12-01(208V50/60HZ) | ||||
| 220V50, 240V60HZ | DILM12-01(220V50, 240V60HZ) | ||||
| 230V50, 240V60HZ | DILM12-01(230V50, 240V60HZ) | ||||
| 415V50, 440V60HZ | DILM12-01(415V50, 440V60HZ) | ||||
DC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / DC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 3 | 10 | 0 | 1 | 24VDC | DILM12-01 (24VDC) |
DILM12-01 Contact Sequence
DILM12-01 Dimensions
