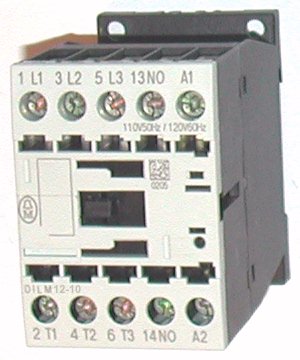

DILM12-10

DILM12-10

KLOCKNER MOELLER ELECTRIC
Genuine New OEM Part

  • $88.50
    Unit price per

In stock, can ship today!

717-209-7100



Call to Order 717-209-7100
Same Day Shipping



DILM12-10 Klockner Moeller xStart Contactors

The Klockner Moeller DILM12-10
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 10 HP at 460V. It comes with
1NO auxiliary contact.
Conforms to IEC 60947

AC/DC Operating Coil Voltage:

Options listed below

Tools Required:

Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:

Overload Relays:

ZB12 Motor Overload Relays


pdfpicView Data Sheet


DILM12-10

AC Selection Chart:

Three phase
HP ratings
Auxiliary
contacts
Coil Voltage / AC Voltage Catalog No.
230V 460V NO NC
3 10
0 1 24V50HZ/60HZ DILM12-10(24V50HZ/60HZ)
110V50HZ, 120V60HZ DILM12-10(110V50HZ, 120V60HZ)
208V50/60HZ DILM12-10(208V50/60HZ)
230V50, 240V60HZ DILM12-10(230V50, 240V60HZ)
415V50, 440V60HZ DILM12-10(415V50, 440V60HZ)


DC Selection Chart:

Three phase
HP ratings
Auxiliary
contacts
Coil Voltage / DC Voltage Catalog No.
230V 460V NO NC
3 10
0 1 24VDC DILM12-10 (24VDC)


DILM12-10 Contact Sequence


DILM12-10 Dimensions
