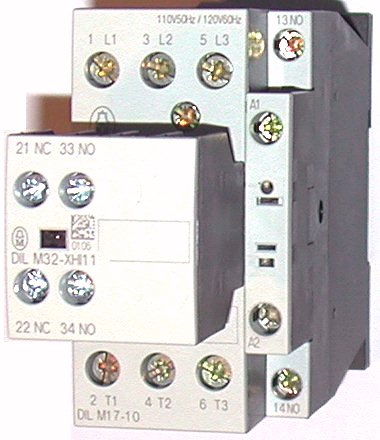

DILM17-21
In stock, can ship today!
717-209-7100
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/controlparts-logo.jpg?v=1602078896)
Call to Order 717-209-7100
Same Day Shipping
DILM17-21 Klockner Moeller xStart Contactors
The Klockner Moeller DILM17-21
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 5 HP at 230V
and 10 HP at 460V. It comes with
2NO and 1NC auxiliary contact.
Conforms to IEC 60947
AC/DC Operating Coil Voltage:
Accessories:
Overload Relays:
DILM17-21
AC Selection Chart:
Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
---|---|---|---|---|---|
230V | 460V | NO | NC | ||
5 | 10 | 2 | 1 | 24V50HZ/60HZ | DILM17-21(24V50HZ/60HZ) |
110V50HZ, 120V60HZ | DILM17-21(110V50HZ, 120V60HZ) | ||||
208V50/60HZ | DILM17-21(208V50/60HZ) | ||||
230V50, 240V60HZ | DILM17-21(230V50, 240V60HZ) | ||||
415V50, 480V60HZ | DILM17-21(415V50, 480V60HZ) |
DC Selection Chart:
Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / DC Voltage | Catalog No. | ||
---|---|---|---|---|---|
230V | 460V | NO | NC | ||
5 | 10 |
2 | 1 | 24-27 |
DILM17-21 (RDC24) |
DILM17-21 Contact Sequence
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/DILM7-21_6fb97f2d-17b8-4325-bec0-e731bd951712_480x480.jpg?v=1593699004)
DILM17-21 Dimensions
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/DILM17-01_11fc5d11-c206-4d1b-a8ab-6b5b01504771.jpg?v=1588094337)
