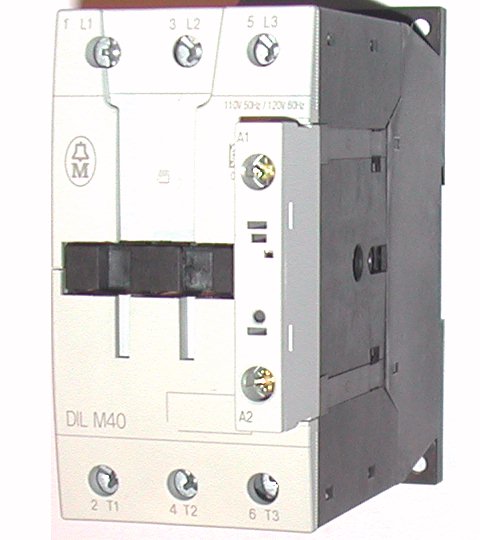

DILM40 Klockner Moeller xStart Contactors
The Klockner Moeller DILM40 / DILM(C)40
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 15 HP at 230V
and 30 HP at 460V.
Conforms to IEC 60947
AC/DC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accesories:
Overload Relays:
DILM40
AC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 15 | 30 |
0 |
0 |
24V50HZ/60HZ | DILM40(24V50HZ/60HZ) |
| 110V50HZ, 120V60HZ | DILM40(110V50HZ, 120V60HZ) | ||||
| 208V50/60HZ | DILM40(208V60HZ) | ||||
| 230V50, 240V60HZ | DILM40(230V50, 240V60HZ) | ||||
| 415V50, 440V60HZ | DILM40(415V50, 480V60HZ) | ||||
DC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / DC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 15 | 30 |
0 | 0 |
24-27 | DILM40(RDC24) |
DILM40 Contact Sequence
DILM40 Dimensions
