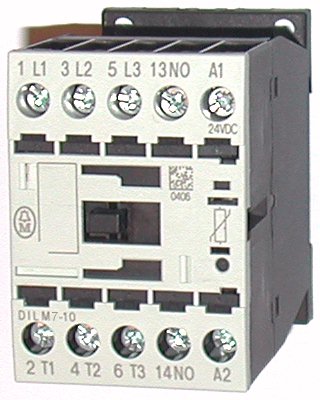

DILM7-10 (24VDC)
In stock, can ship today!
717-209-7100
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/controlparts-logo.jpg?v=1602078896)
Call to Order 717-209-7100
Same Day Shipping
DILM7-10 (24 VDC) Klockner Moeller xStart Contactors
The Klockner Moeller DILM7-10 (24VDC)
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 2 HP at 230V
and 3 HP at 460V. It comes with
1NO auxiliary contact.
Conforms to IEC 60947
DILM7-10 (24VDC)
Selection Chart:
Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / DC Voltage | Catalog No. | ||
---|---|---|---|---|---|
230V | 460V | NO | NC | ||
2 | 3 | 1 | 0 | 24 | DILM7-10 (24VDC) |
DILM7-10 (24VDC) Contact Sequence:
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/DILM17-10_8e1388bc-e6f8-4860-9440-dc9cb05ced5b_480x480.jpg?v=1588095743)
DILM7-10 (24VDC) Dimensions:
![](https://control-parts.myshopify.com/moeller.electric.xstart/p/dil/DILM7-dimensions.jpg)
