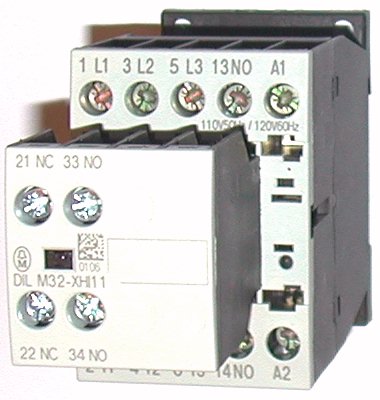

DILM7-21 Klockner Moeller xStart Contactors
The Klockner Moeller DILM7-21
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 2 HP at 230V
and 3 HP at 460V. It comes with
2NC and 1NO auxiliary contact.
Conforms to IEC 60947
AC/DC Operating Coil Voltage:
Options listed below
Tools Required:
Accessories:
Overload Relays:
DILM7-21
AC Selection Chart:
Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
---|---|---|---|---|---|
230V | 460V | NO | NC | ||
2 | 3 | 2 | 1 |
24V50HZ/60HZ | DILM7-21(24V50HZ/60HZ) |
110V50HZ, 120V60HZ | DILM7-21(110V50HZ, 120V60HZ) | ||||
208V50/60HZ | DILM7-21(208V50/60HZ) | ||||
230V50, 240V60HZ | DILM7-21(230V50, 240V60HZ) | ||||
415V50, 440V60HZ | DILM7-21(415V50, 480V60HZ) |
DC Selection Chart:
Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
---|---|---|---|---|---|
230V | 460V | NO | NC | ||
2 | 3 | 2 | 1 | 24VDC | DILM7-21 (24VDC) |
DILM7-21 Contact Sequence
![](https://cdn.shopify.com/s/files/1/0276/0700/7329/files/DILM7-21_6fb97f2d-17b8-4325-bec0-e731bd951712_480x480.jpg?v=1593699004)
DILM7-21 Dimensions
![](/moeller.electric.xstart/p/dil/DILM7-dimensions.jpg)
