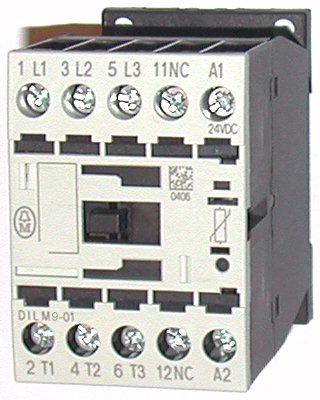

DILM9-01 (24 VDC) Klockner Moeller xStart Contactors

The Klockner Moeller DILM9-01 (24VDC)
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 5 HP at 460V. It comes with
1NC auxiliary contact.
Conforms to IEC 60947

DC Operating Coil Voltage:

24VDC

Tools Required:

Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:


Overload Relays:

ZB12 Motor Overload Relays

DILM9-01(24VDC)


Selection Chart:

Amp
ratings
Three phase
HP ratings
Auxiliary
contacts
Coil Voltage / DC Voltage Catalog No.
AC1 230V 460V NO NC
20 3 5 0 1 24VDC DILM9-01(24VDC)


DILM9-01(24VDC) Contact Sequence


DILM9-01(24VDC) Dimensions
